Image Details

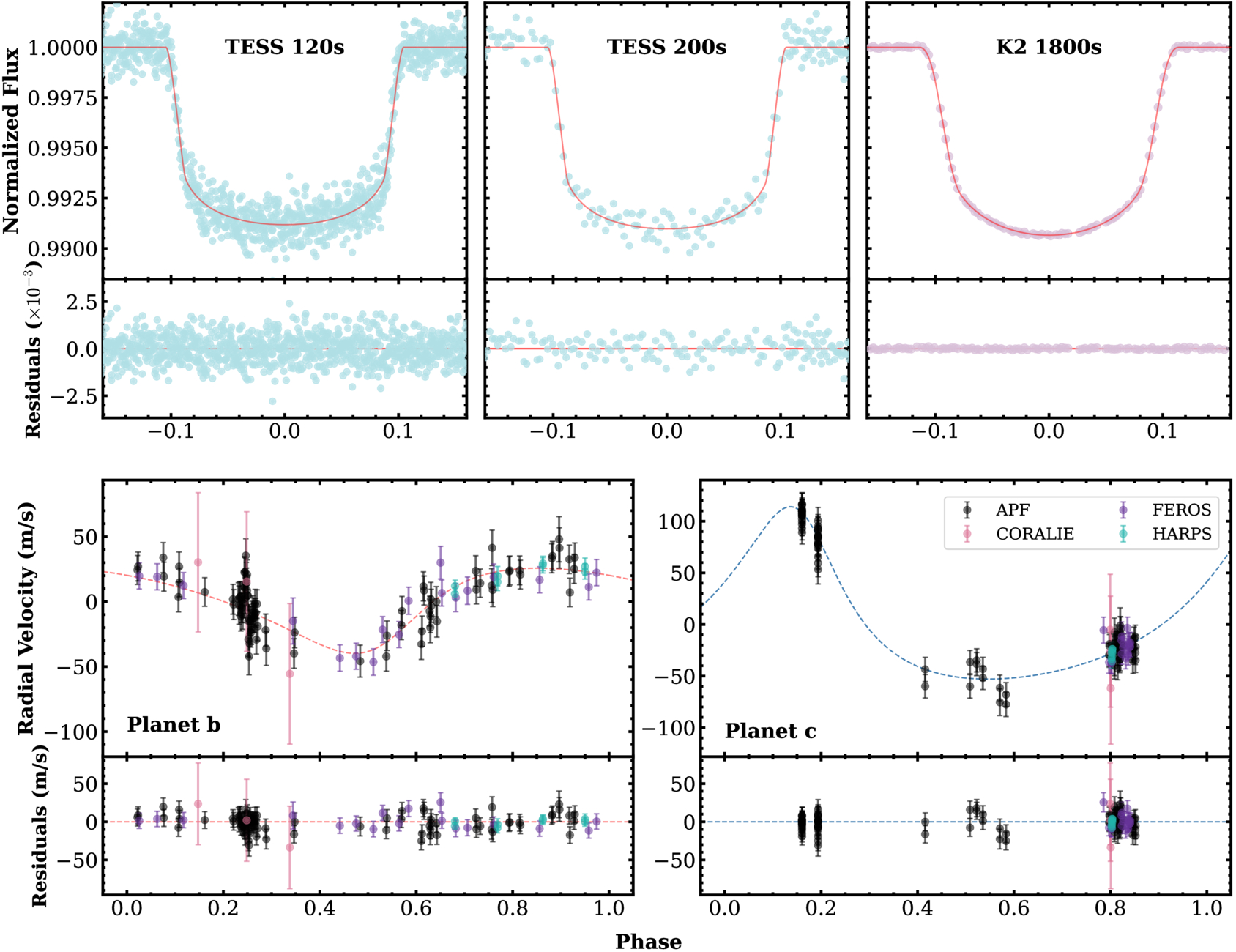

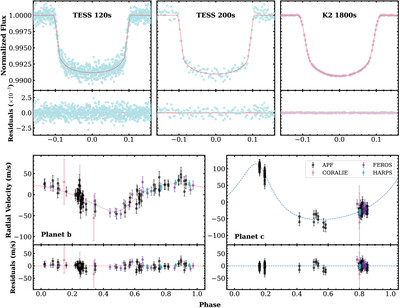

Caption: Figure 3.
TESS (light blue) and K2 (lavender) flux measurements versus phase for K2-232 showing the transiting warm-Jupiter K2-232b, together with APF (black), CORALIE (pink), FEROS (purple), and HARPS (teal) RV measurements versus phase for the K2-232 system. Top panels: TESS and K2 normalized flux measurements phase-folded to planet b’s period with 120 s (left), 200 s (center), and 1800 s (right) cadence data. Bottom panels: RV measurements phase-folded to the periods of planet b (left) and planet c (right), with the red and blue dashed lines indicating their respective best-fit curves. All residual data is shown on the bottom of each panel.
