Empirical H- and K-band Limb Darkening for 31 CHARA Stars: A Near-infrared Benchmark for Stellar-Atmosphere Models

  • Authors: Narsireddy Anugu, John D. Monnier, Antoine Mérand, Becky Flores, Alexandre Gallenne, Douglas R. Gies, Mayra Gutierrez, Robert Klement, Stefan Kraus, Jayadev Rajagopal, Rachael M. Roettenbacher, Gail H. Schaefer

Narsireddy Anugu et al 2026 The Astronomical Journal 172 .

  • Provider: AAS Journals

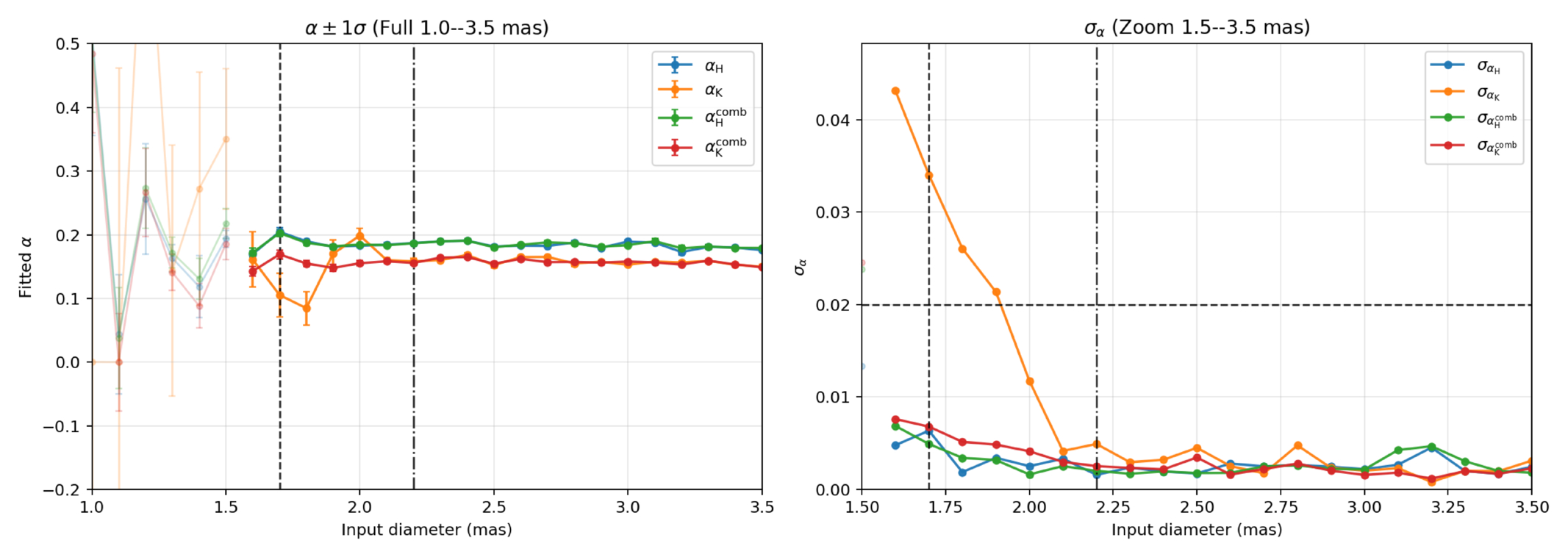

Caption: Figure A1.

Synthetic recovery test for the power-law limb-darkening coefficient as a function of input angular diameter. The left panel shows the recovered H- and K-band coefficients for independent and joint H + K fits, with 1σ uncertainties; points at θ < 1.5 mas are deemphasized because the recovery is unstable. The right panel shows the corresponding coefficient uncertainties, with σα = 0.02 marked for reference. Vertical lines at θ = 1.8 and 2.3 mas indicate the approximate transition to robust H-band and independent K-band recovery, respectively.
