Mapping Interstellar Dust in the Foreground Outer Disk of Overlapping Galaxy Pair VV 191 with HST and JWST

  • Authors: Clayton D. Robertson, Benne W. Holwerda, Jessica M. Berkheimer, Trevor Butrum, Ian Castellano, Kyle W. Cook, William C. Keel, Anton M. Koekemoer, Divya Patel, Maria del Carmen Polletta, Rogier A. Windhorst

Clayton D. Robertson et al 2025 The Astronomical Journal 170 .

  • Provider: AAS Journals

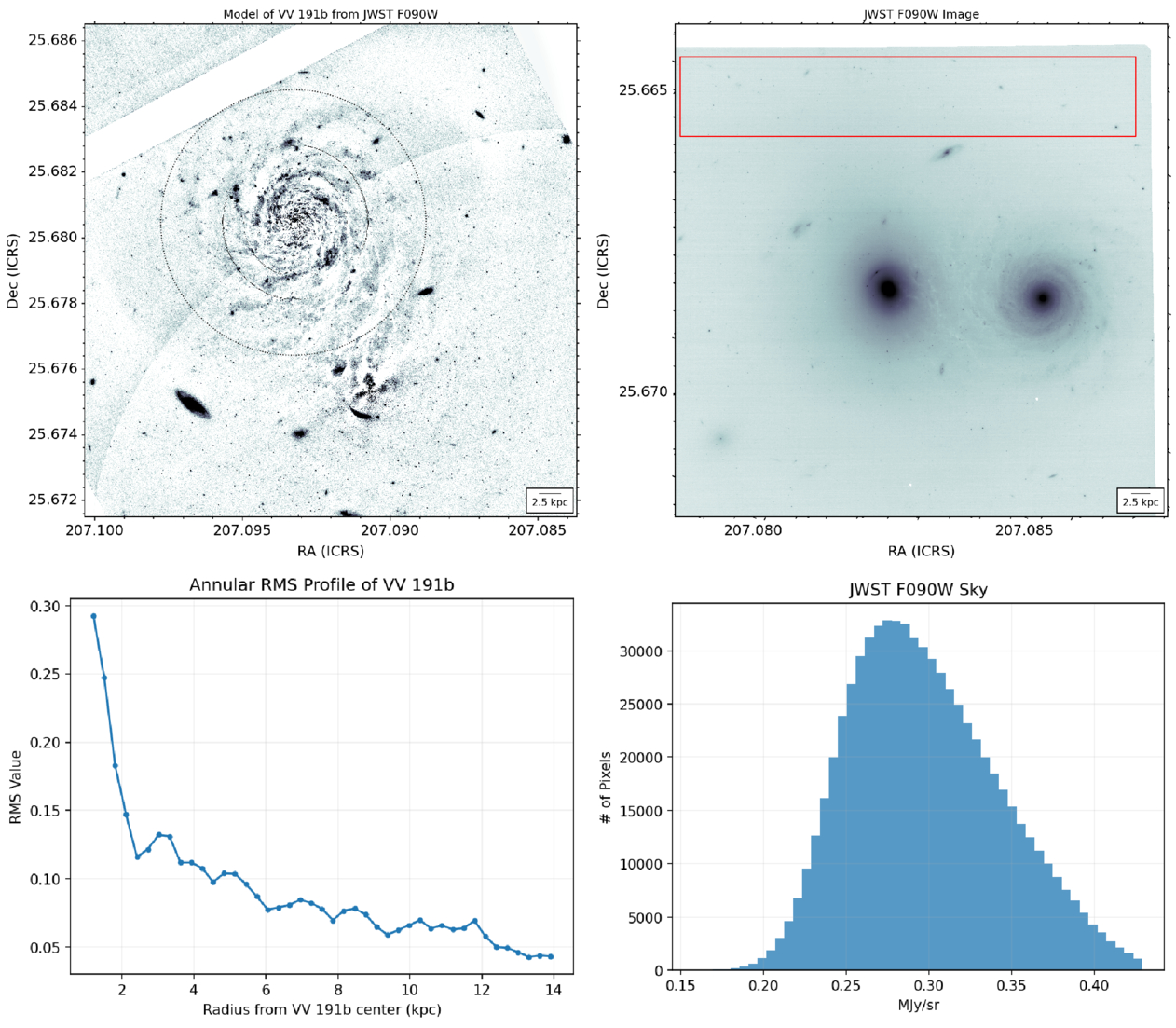

Caption: Figure 12.

Top left: the modeled foreground spiral galaxy, VV 191b, determined by effectively subtracting out the modeled background elliptical galaxy. One can see the subtle outline of the background elliptical in this image. A radius of ∼14 kpc is overlaid in dotted black to show the extent of the rms annular profile. Top right: the JWST F090W image of VV 191 with the sampled sky with low S/N used to calculate its rms outlined in red. Bottom left: the annular rms profile of VV 191. Each annulus has a bin width of 5 pixels. Bottom right: histogram of the sigma-clipped sky region whose sample is shown above in the F090W image. The units are in megajanskys per steradian.
