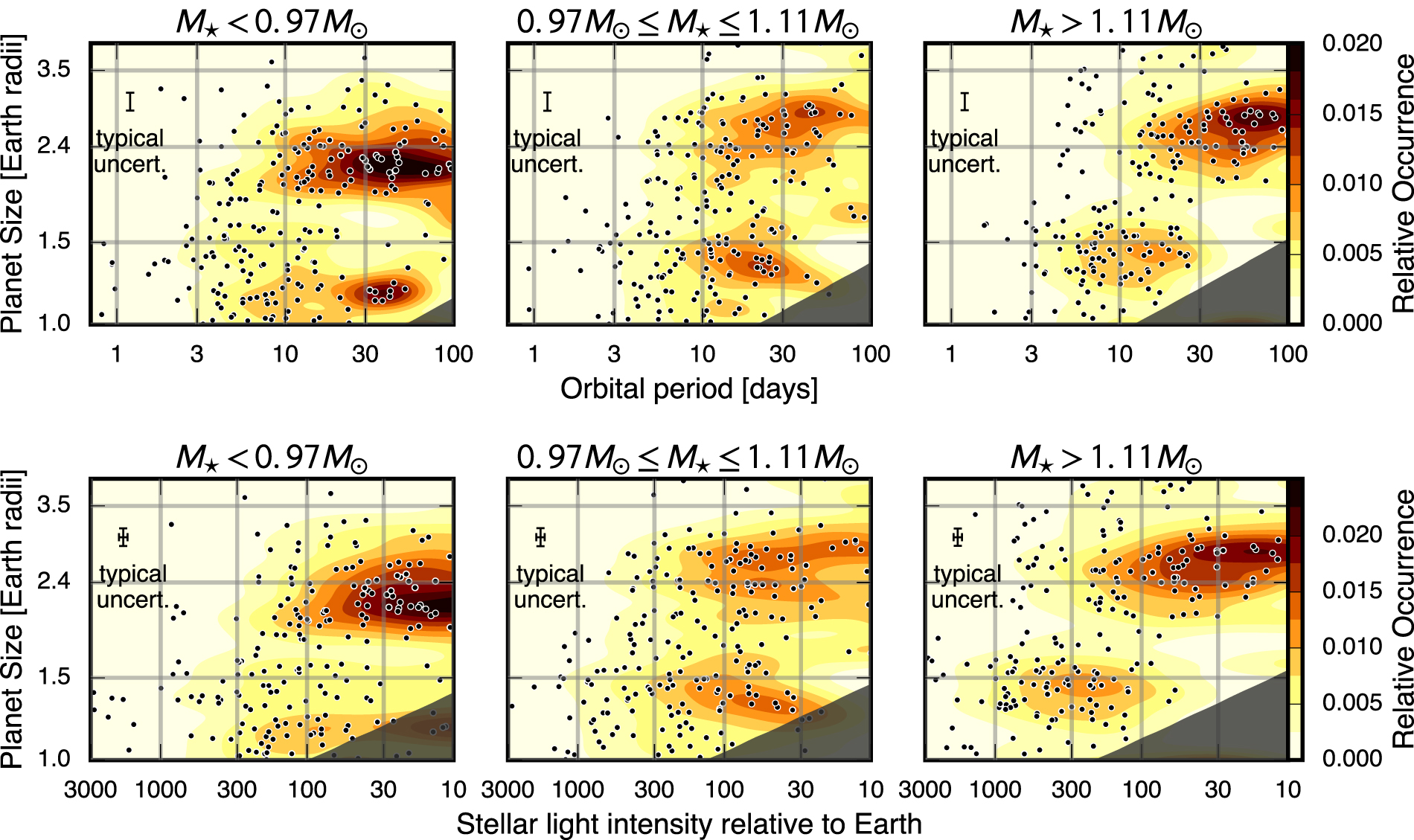

Caption: Figure 9.
Top row: the two-dimensional distribution of planet size and orbital period for three bins of stellar mass. The typical size of super-Earths (﹩{R}_{p}﹩ = 1.0–1.7 ﹩{R}_{\oplus }﹩) and sub-Neptunes (﹩{R}_{p}﹩ = 1.7–4.0 ﹩{R}_{\oplus }﹩) increases with stellar mass while typical orbital periods are roughly constant. Bottom row: same as top row, but with insolation flux on the horizontal axis. The population of super-Earths and sub-Neptunes shifts to higher incident flux for higher mass stars.
© 2018. The American Astronomical Society. All rights reserved.
