Figure 2 from The Radio Sky at Meter Wavelengths: m-mode Analysis Imaging with the OVRO-LWA

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

The Radio Sky at Meter Wavelengths: m-mode Analysis Imaging with the OVRO-LWA

Authors: Michael W. Eastwood, Marin M. Anderson, Ryan M. Monroe, Gregg Hallinan, Benjamin R. Barsdell, Stephen A. Bourke, M. A. Clark, Steven W. Ellingson, Jayce Dowell, Hugh Garsden, Lincoln J. Greenhill, Jacob M. Hartman, Jonathon Kocz, T. Joseph W. Lazio, Danny C. Price, Frank K. Schinzel, Gregory B. Taylor, Harish K. Vedantham, Yuankun Wang, and David P. Woody

2018 The Astronomical Journal 156 32.

Provider: AAS Journals

Caption: Figure 2.

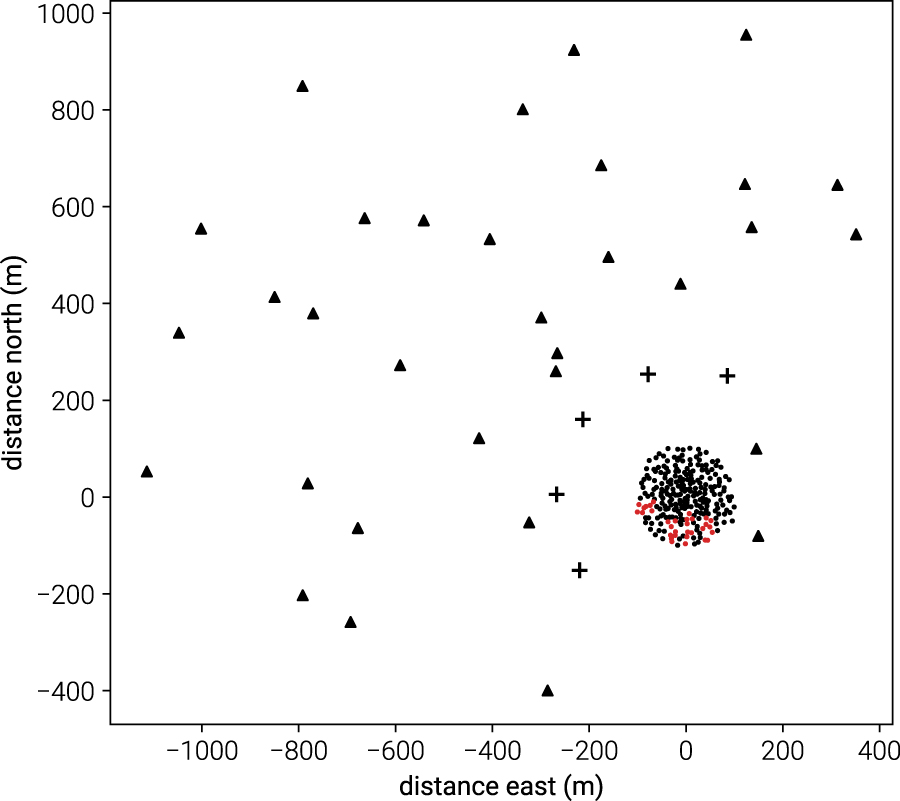

Antenna layout for the OVRO-LWA. Black dots correspond to antennas within the 200 m diameter core of the array. The 32 triangles are the expansion antennas built in early 2016 in order to increase the longest baseline to ∼1.5 km. The red dots are core antennas that are disconnected from the correlator in order to accommodate these antennas. The five crosses are antennas equipped with noise-switched front ends.
