Figure 11 from Electron Energy Partition across Interplanetary Shocks. II. Statistics

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

Electron Energy Partition across Interplanetary Shocks. II. Statistics

Authors: Lynn B. Wilson, Li-Jen Chen, Shan Wang, Steven J. Schwartz, Drew L. Turner, Michael L. Stevens, Justin C. Kasper, Adnane Osmane, Damiano Caprioli, Stuart D. Bale, Marc P. Pulupa, Chadi S. Salem, and Katherine A. Goodrich

2019 The Astrophysical Journal Supplement Series 245 24.

Provider: AAS Journals

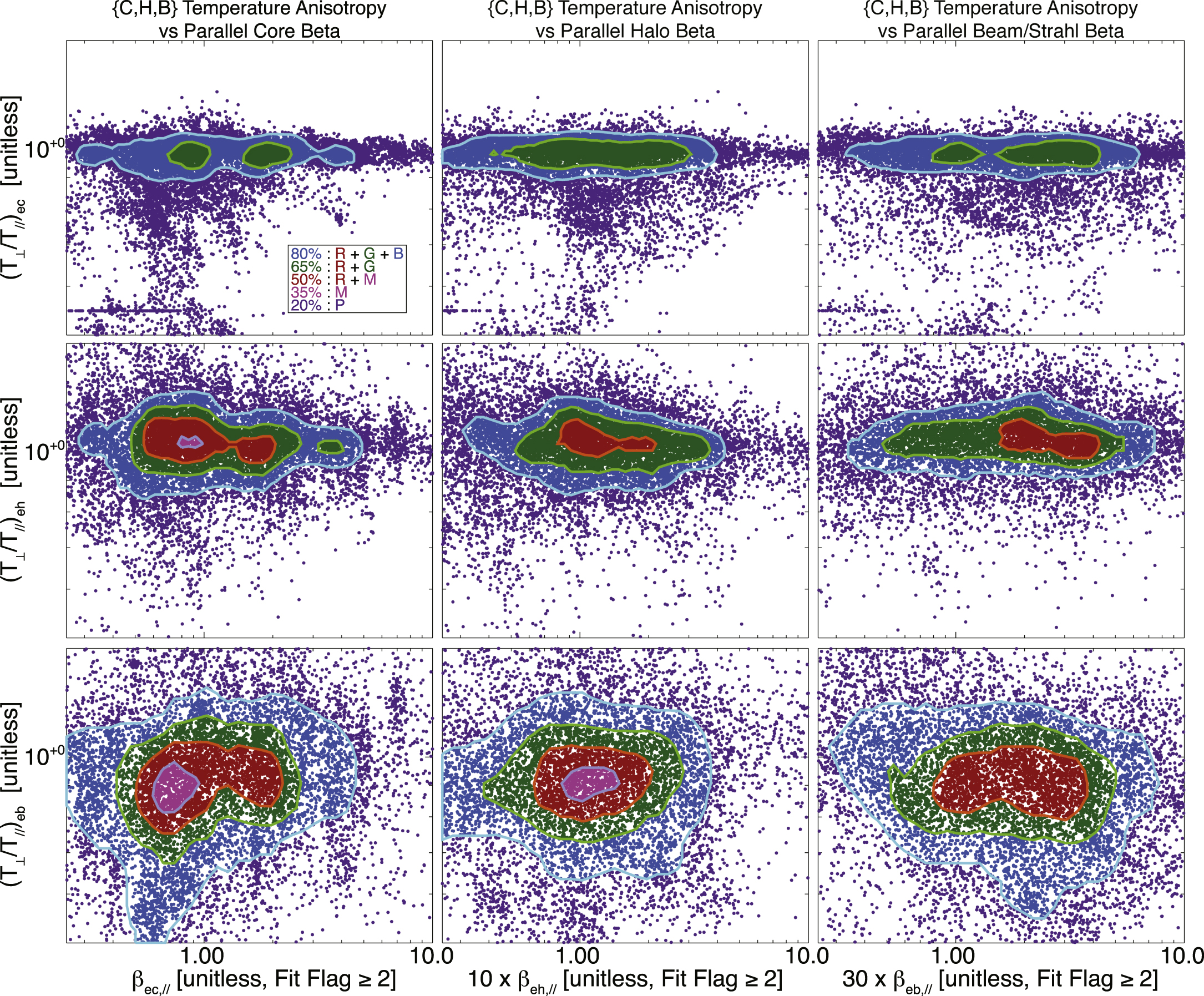

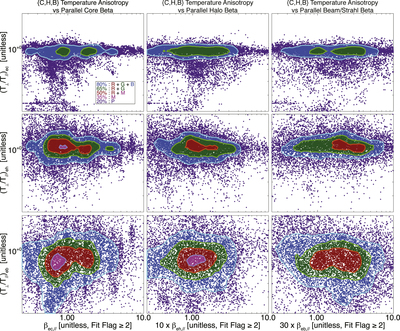

Caption: Figure 11.

Temperature anisotropy, ﹩{{ \mathcal A }}_{\mathrm{es}}﹩ (N/A), vs. parallel electron beta, β_s,∥ (N/A), of electron component s. The color-coded contours (legend in lower right corner of top left panel) are generated in the same fashion as those in Figure 6. Note that the halo and beam/strahl beta values have been increased by factors of 10 and 30, respectively, to maintain a uniform horizontal axis scale across all columns.
