The Impact of the Explicit Representation of Convection on the Climate of a Tidally Locked Planet in Global Stretched-mesh Simulations

Authors: Denis E. Sergeev, Ian A. Boutle, F. Hugo Lambert, Nathan J. Mayne, Thomas Bendall, Krisztian Kohary, Enrico Olivier, Ben Shipway

Denis E. Sergeev et al 2024 The Astrophysical Journal 970 .

Provider: AAS Journals

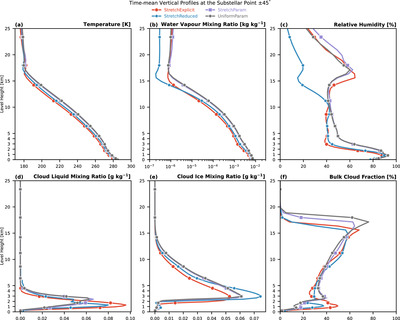

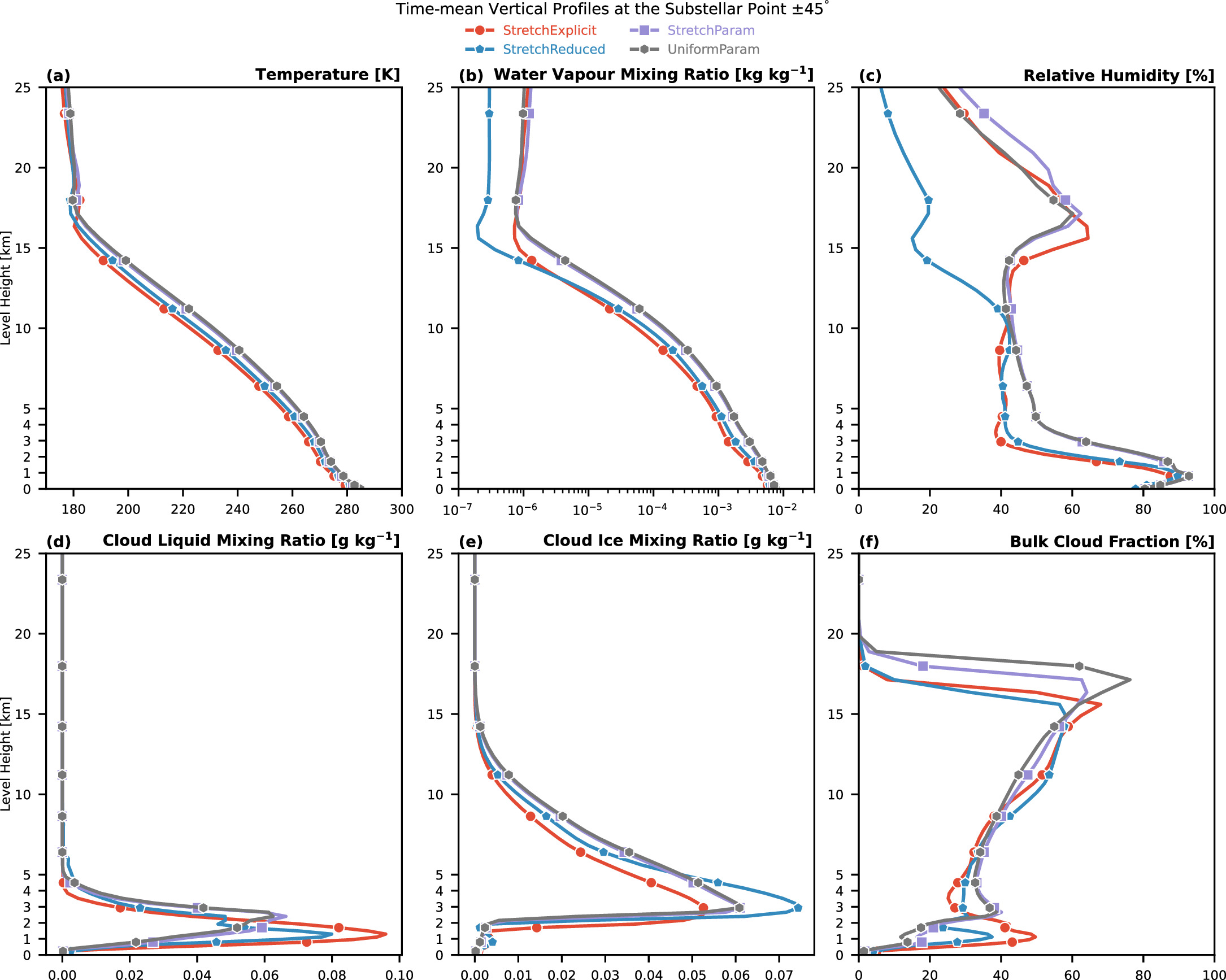

Caption: Figure 4.

Vertical profiles of time mean diagnostics in the substellar region within the bottom 25 km of the atmosphere: (a) temperature in K, (b) water vapor mixing ratio in kg kg⁻¹, (c) relative humidity in percent, (d) cloud liquid mixing ratio in g kg⁻¹, (e) cloud ice mixing ratio in g kg⁻¹, (f) cloud fraction in percent.
