The Role of Outflow Feedback on Accretion of Compact Objects in Accretion Disk of Active Galactic Nuclei

  • Authors: Ken Chen, Jia Ren, Zi-Gao Dai

Ken Chen et al 2023 The Astrophysical Journal 948 .

  • Provider: AAS Journals

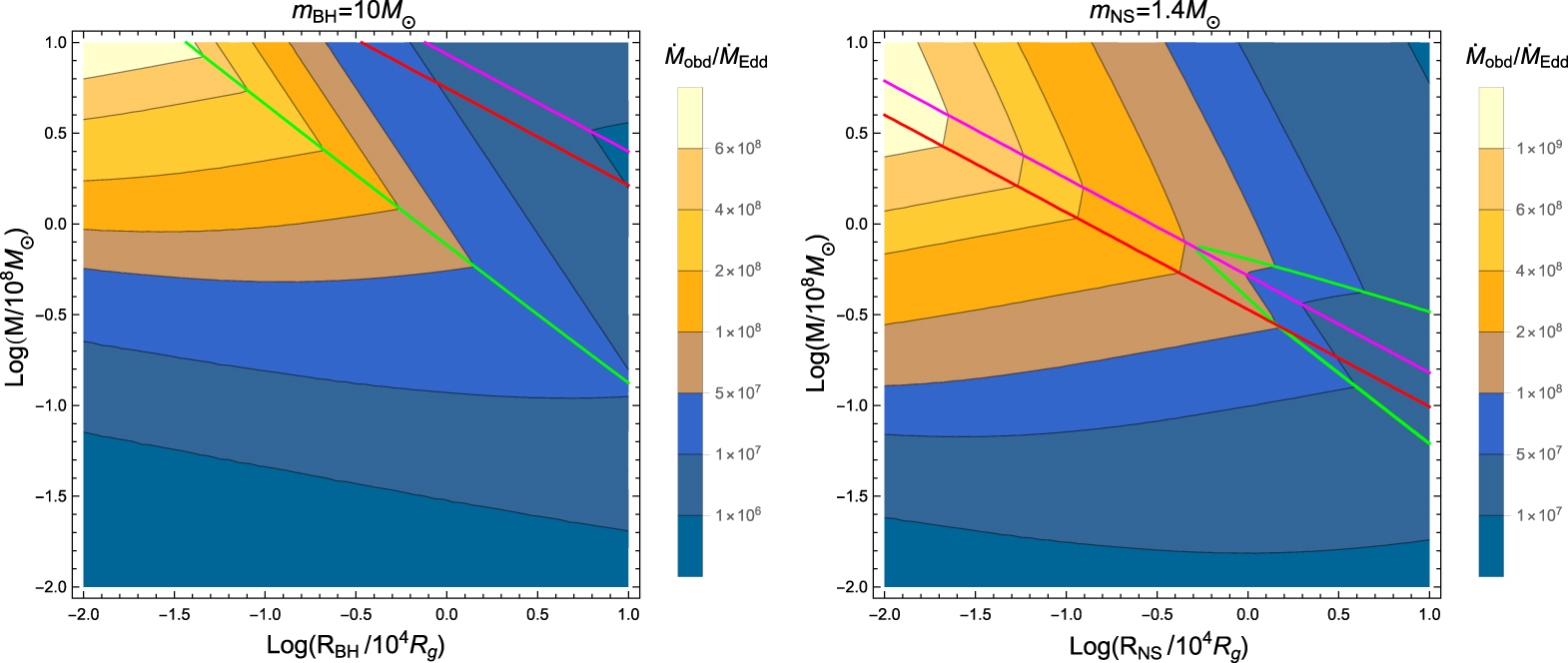

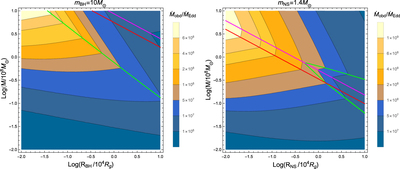

Caption: Figure 1.

The initial mass inflow rates at the outer boundary of the circum-CO disks accreting the AGN disk gas shown in the R COM plane. The fiducial values of the parameters are α = 0.1, ﹩\dot{{ \mathcal M }}=0.5﹩, α CO = 0.1, and h = 0.5. The left panel shows the case of m BH = 10M BH accretion, and the right panel shows the case of m NS = 1.4M NS accretion, where the magenta, red lines, and above regions represent the boundary of r Hillr BHL and Hr BHL. The green lines represent the boundary of Q CO = 1, where the above region in the left panel and the contained region in the right panel show Q CO < 1.
