Figure 4 from Particle Acceleration by Pickup Process Upstream of Relativistic Shocks

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

Particle Acceleration by Pickup Process Upstream of Relativistic Shocks

Authors: Masanori Iwamoto, Takanobu Amano, Yosuke Matsumoto, Shuichi Matsukiyo, and Masahiro Hoshino

2022 The Astrophysical Journal 924 108.

Provider: AAS Journals

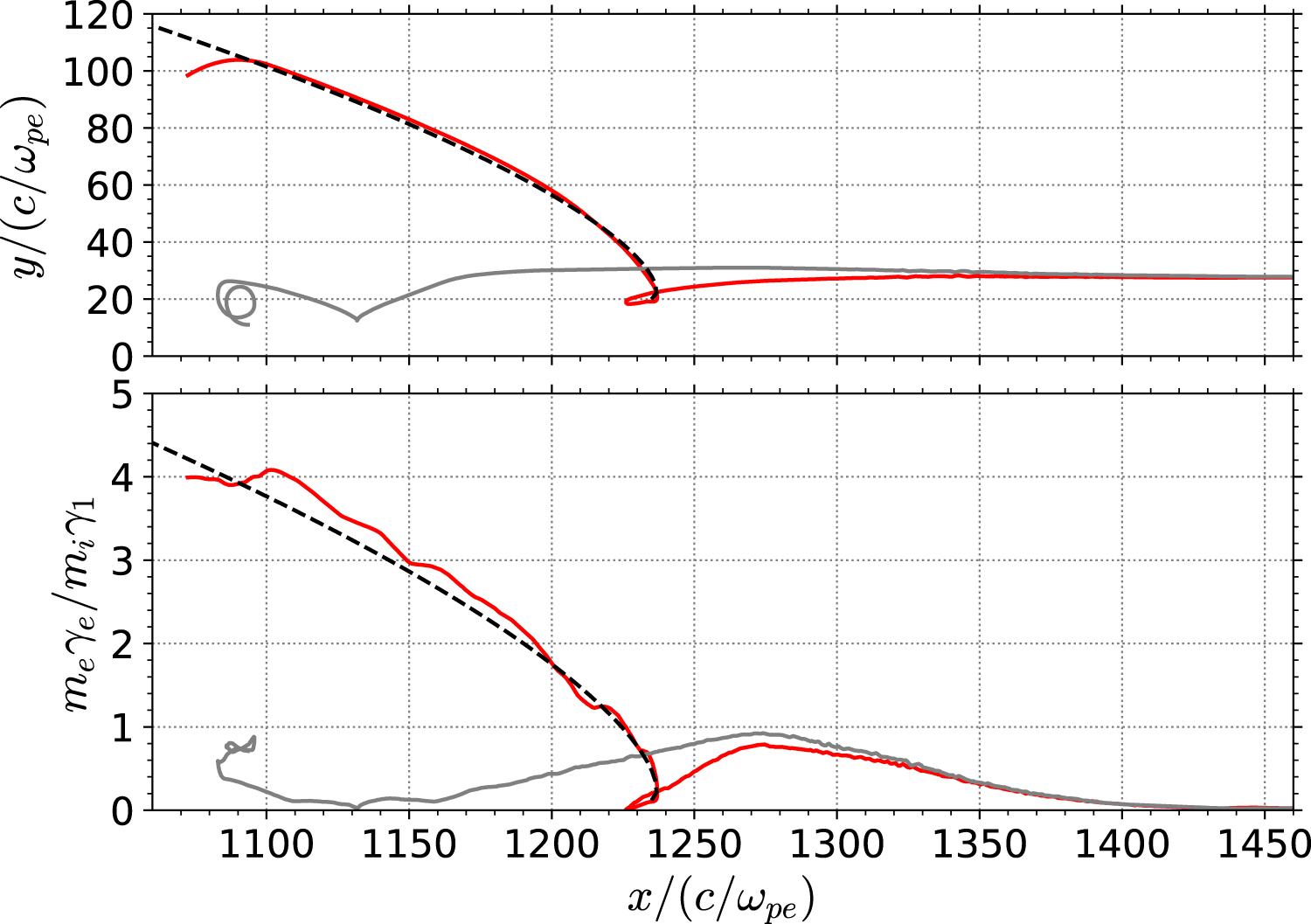

Caption: Figure 4.

Nonthermal (red) and thermal (gray) electron trajectories in the x–y (top) and x–γ (bottom) space. The dashed black line is the analytical solution of the pickup process.
