Particle Acceleration by Pickup Process Upstream of Relativistic Shocks

Authors: Masanori Iwamoto, Takanobu Amano, Yosuke Matsumoto, Shuichi Matsukiyo, and Masahiro Hoshino

2022 The Astrophysical Journal 924 108.

Provider: AAS Journals

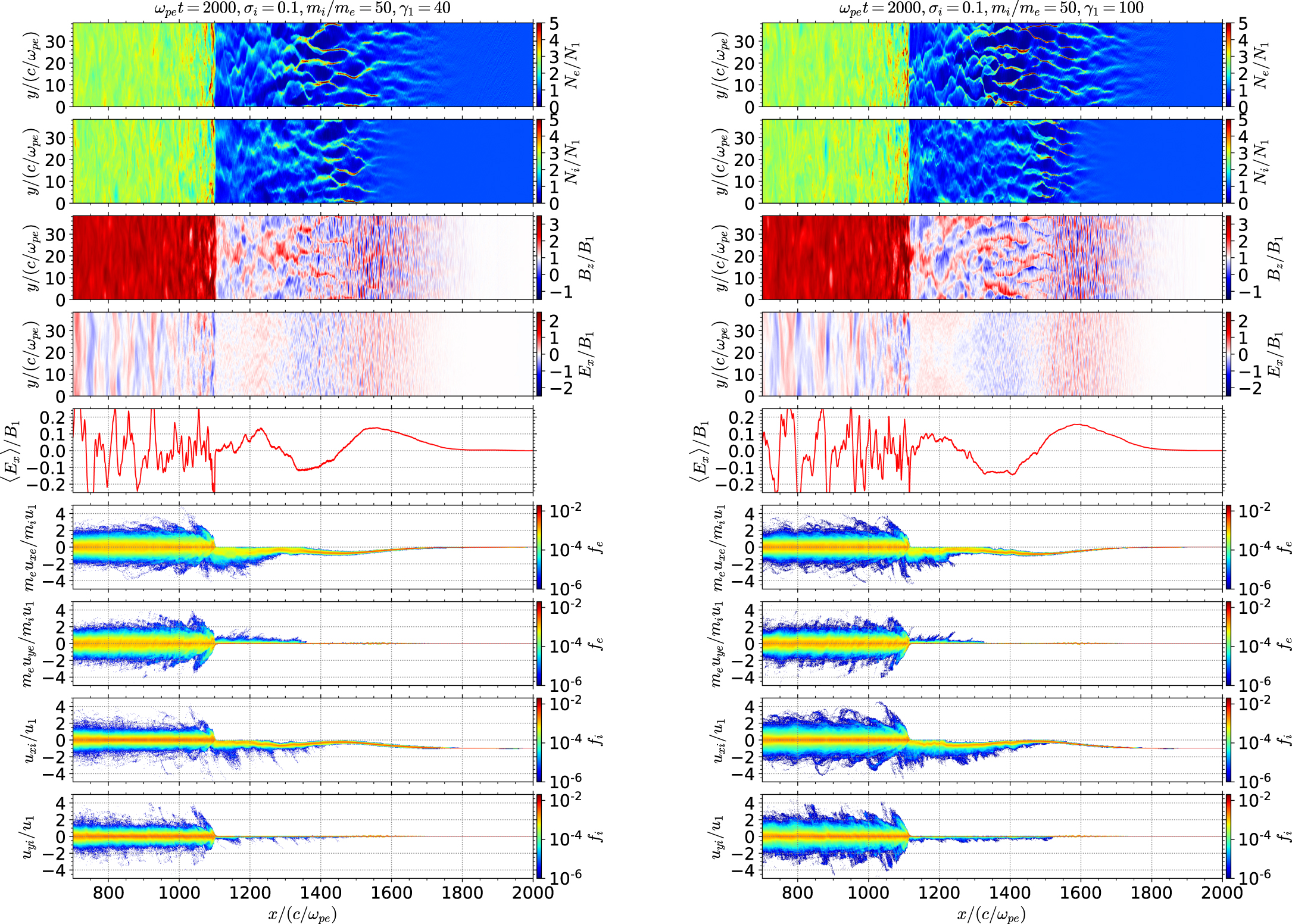

Caption: Figure 2.

Shock structures at ω_pet = 2000 with γ₁ = 40 (left) and 100 (right). The electron number density N_e, the ion number density N_i, the z component of the magnetic field B_z, the x component of the electric field E_x, the transversely averaged electric field 〈E_x〉, and the phase-space densities in the x–u_xs and x–u_ys are shown.
