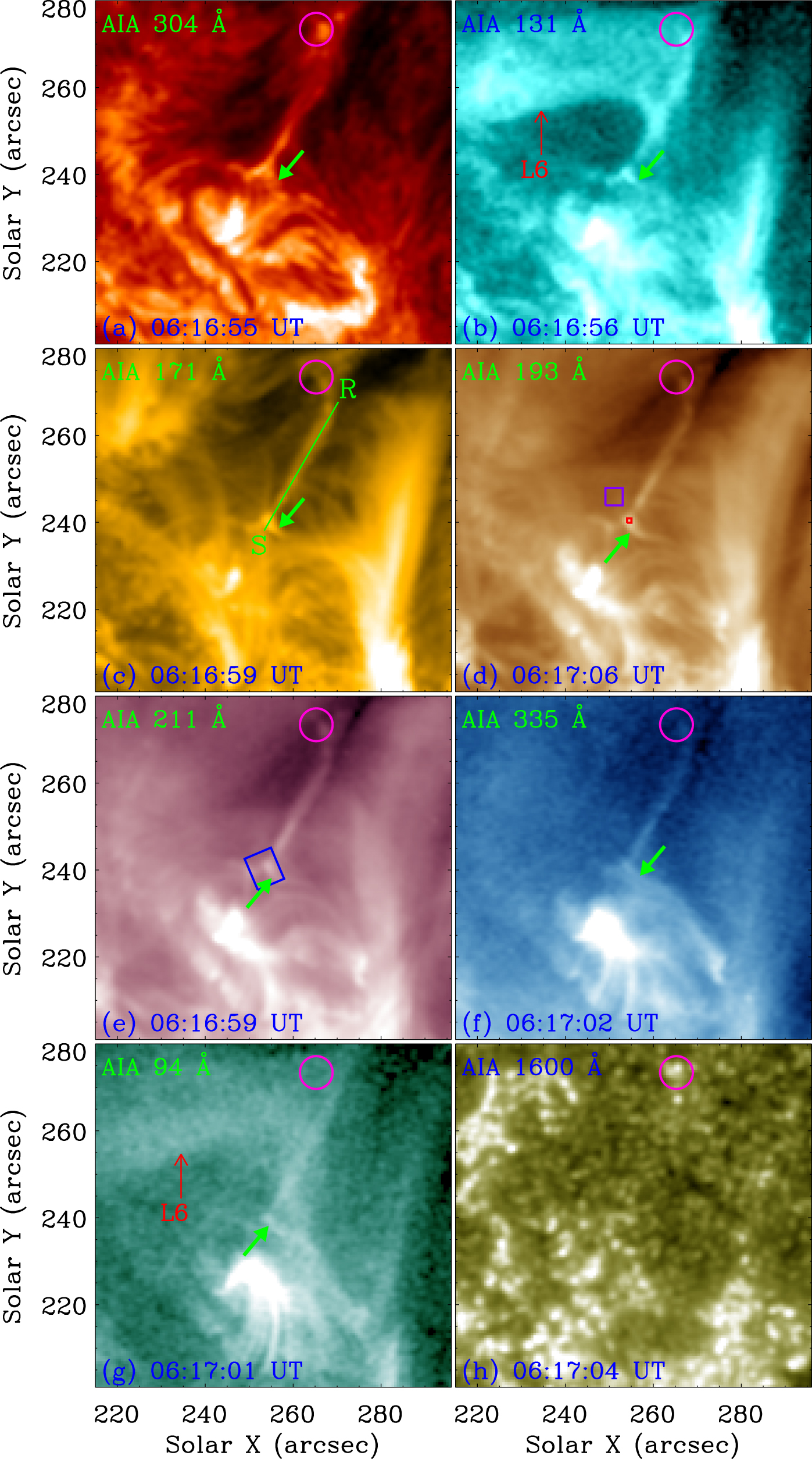

Magnetic reconnection between loops after the filament eruption observed by AIA: (a) AIA 304 Å, (b) 131 Å, (c) 171 Å, (d) 193 Å, (e) 211 Å, (f) 335 Å, (g) 94 Å, and (h) 1600 Å images. The pink circles enclose the north endpoint of loops L2. The green solid arrows in (a)–(g) denote the current sheet. The green line RS in (c) shows the position for the time slice of AIA 171 Å images as displayed in Figure 8(b). The red and purple rectangles in (d) separately enclose the region for the DEM curve in Figure 8(c), and the location where the background emission is measured. Same as in Figure 4(e), the blue rectangle in (e) marks the region for the light curves of the AIA EUV channels as shown in Figure 8(a). The FOV is denoted by the red rectangle in Figure 1(a). An animation of the unannotated AIA images is available. It covers ∼5.4 hr starting at 01:00 UT, and the video duration is 12 s. See Section 3.3 for details.

(An animation of this figure is available.)

The video/animation of this figure is available in the online journal.
