Small-scale Magnetic Flux Ropes in the First Two Parker Solar Probe Encounters

Authors: Yu Chen, Qiang Hu, Lingling Zhao, Justin C. Kasper, Stuart D. Bale, Kelly E. Korreck, Anthony W. Case, Michael L. Stevens, John W. Bonnell, Keith Goetz, Peter R. Harvey, Kristopher G. Klein, Davin E. Larson, Roberto Livi, Robert J. MacDowall, David M. Malaspina, Marc Pulupa, and Phyllis L. Whittlesey

2020 The Astrophysical Journal 903 76.

Provider: AAS Journals

Caption: Figure 7.

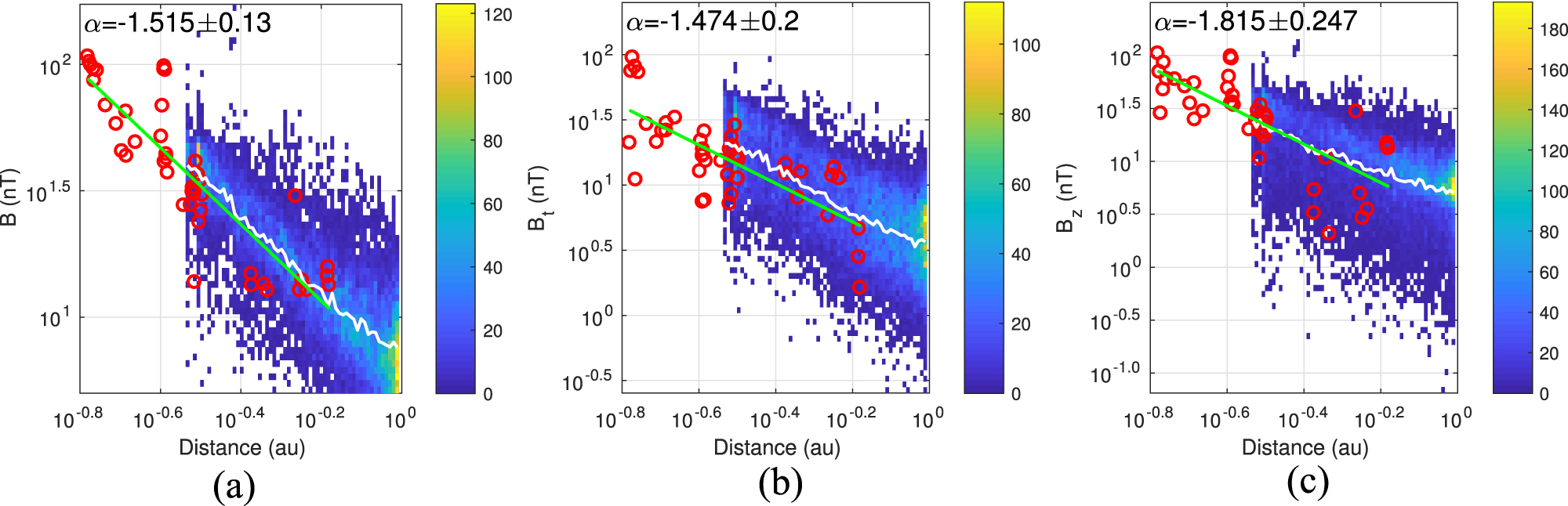

Distributions of SFR magnetic field averaged over each SFR interval with the radial distances r: (a) the total magnetic field, (b) the transverse field B_t, and (c) the axial field B_z. The format follows that of Figure 6.
