Figure 7 from Quantifying the Propagation of Fast Coronal Mass Ejections from the Sun to Interplanetary Space by Combining Remote Sensing and Multi-point In Situ Observations

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

Quantifying the Propagation of Fast Coronal Mass Ejections from the Sun to Interplanetary Space by Combining Remote Sensing and Multi-point In Situ Observations

Authors: Xiaowei Zhao, Ying D. Liu, Huidong Hu, and Rui Wang

2019 The Astrophysical Journal 882 122.

Provider: AAS Journals

Caption: Figure 7.

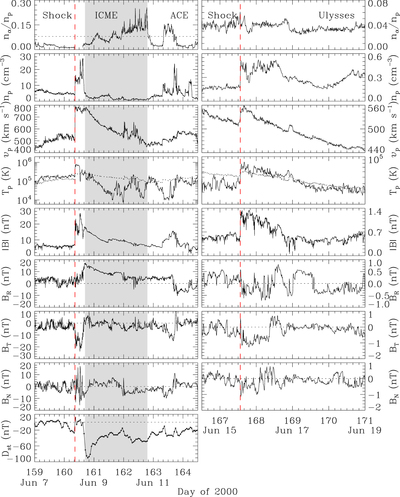

Similar to Figure 2, but for the in situ measurements of the 2000 June 6 CME. Data from ACE have been used due to the deficiency of the solar wind measurements at Wind. The first panel on the left shows the density ratio between alpha particles and protons with the dotted line marking the 0.08 level.
