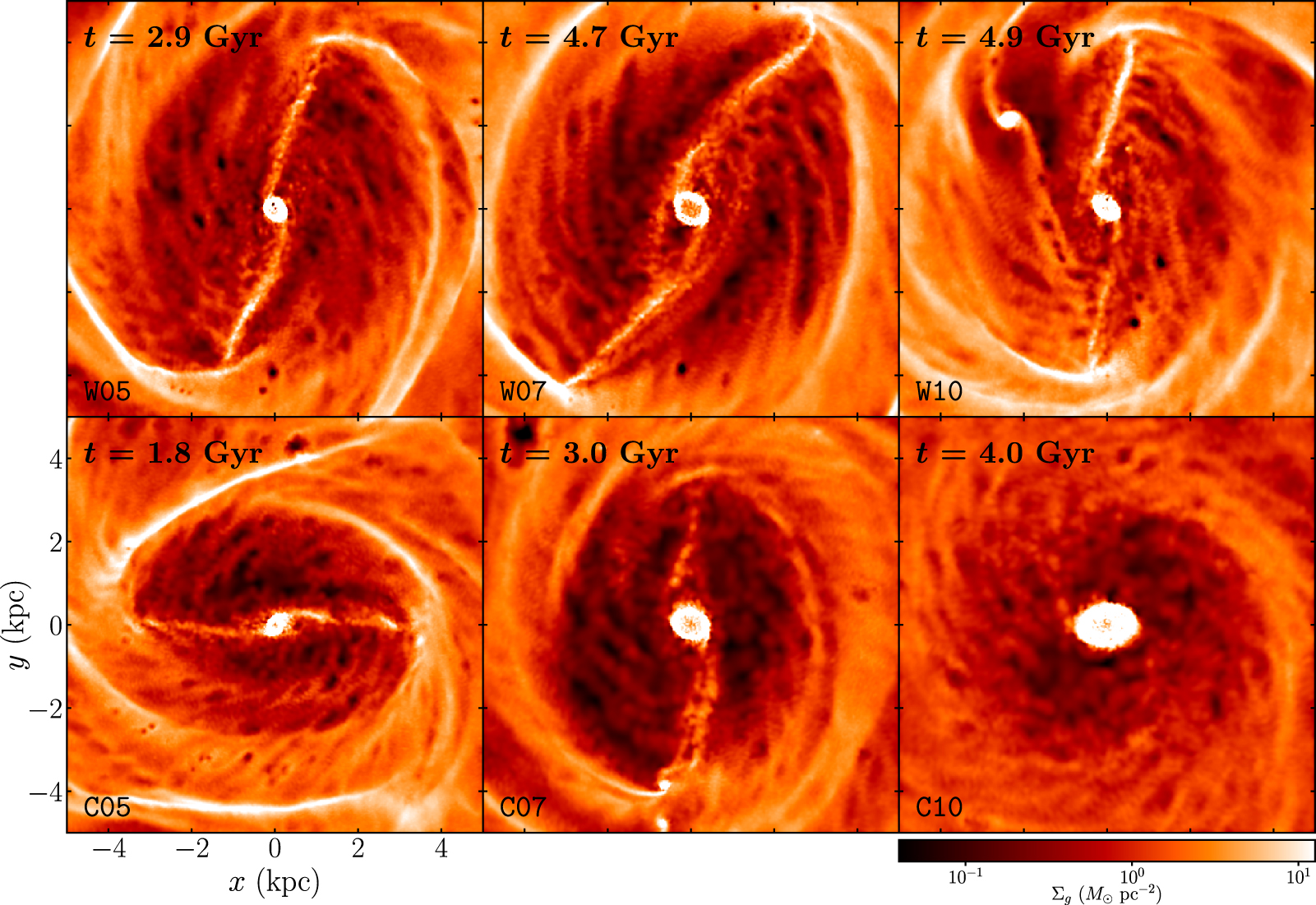

Logarithm of the gas surface density in the central 5 kpc regions for all models with gas. The selected time for each model is marked at the top left corner of each panel, while the model name is given at the lower left corner. Except in model C10 with an oval, interbar spur-like structures linked almost perpendicularly to the dust lanes are common.
