Figure 8 from Quasi-periodic Counter-propagating Fast Magnetosonic Wave Trains from Neighboring Flares: SDO/AIA Observations and 3D MHD Modeling

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

Quasi-periodic Counter-propagating Fast Magnetosonic Wave Trains from Neighboring Flares: SDO/AIA Observations and 3D MHD Modeling

2018 The Astrophysical Journal 860 54.

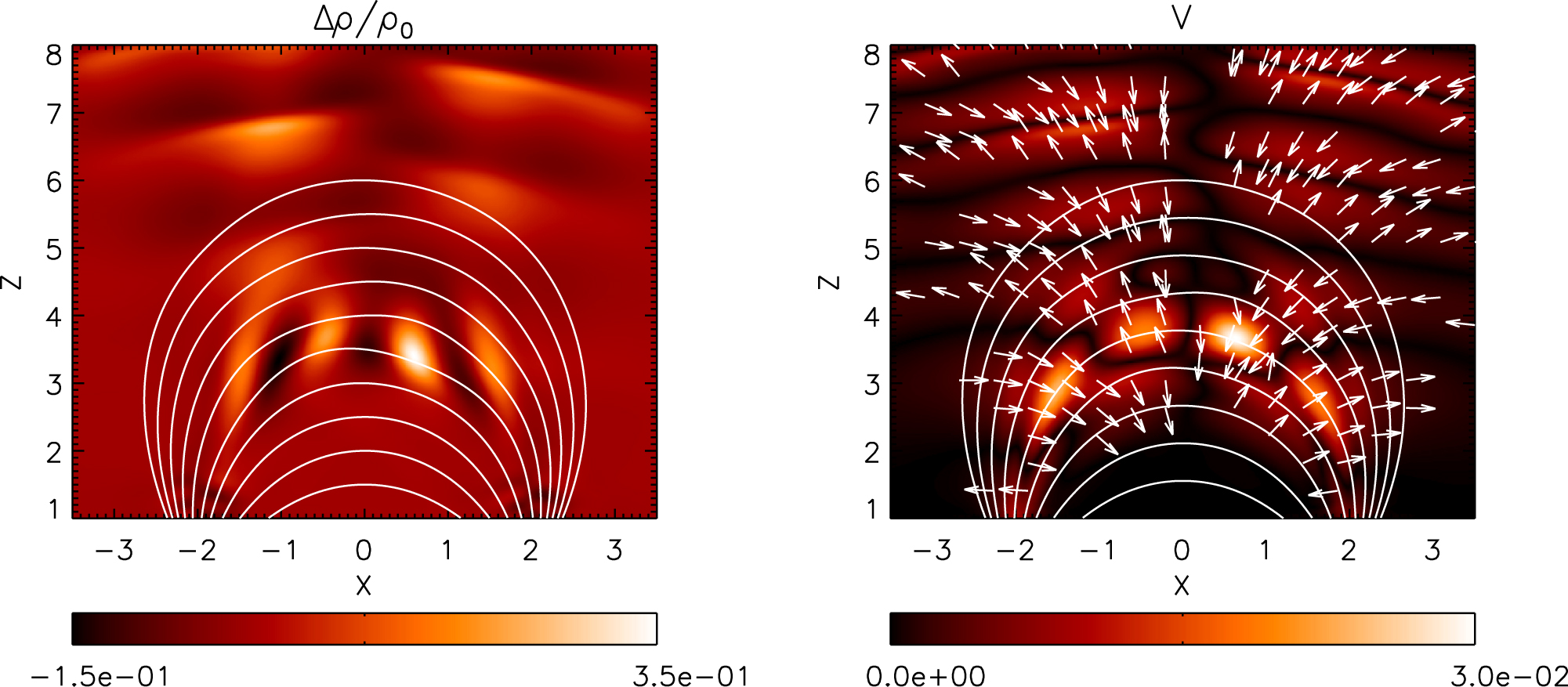

Caption: Figure 8.

Same as Figures 7(a) and (b) (Case 1, d = 2.5) but for Case 4 (d = 2) at t = 98.5τ_A.
