Figure 6 from A Model for Negative Ion Chemistry in Titan’s Ionosphere

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

A Model for Negative Ion Chemistry in Titan’s Ionosphere

Authors: Vrinda Mukundan, and Anil Bhardwaj

2018 The Astrophysical Journal 856 168.

Provider: AAS Journals

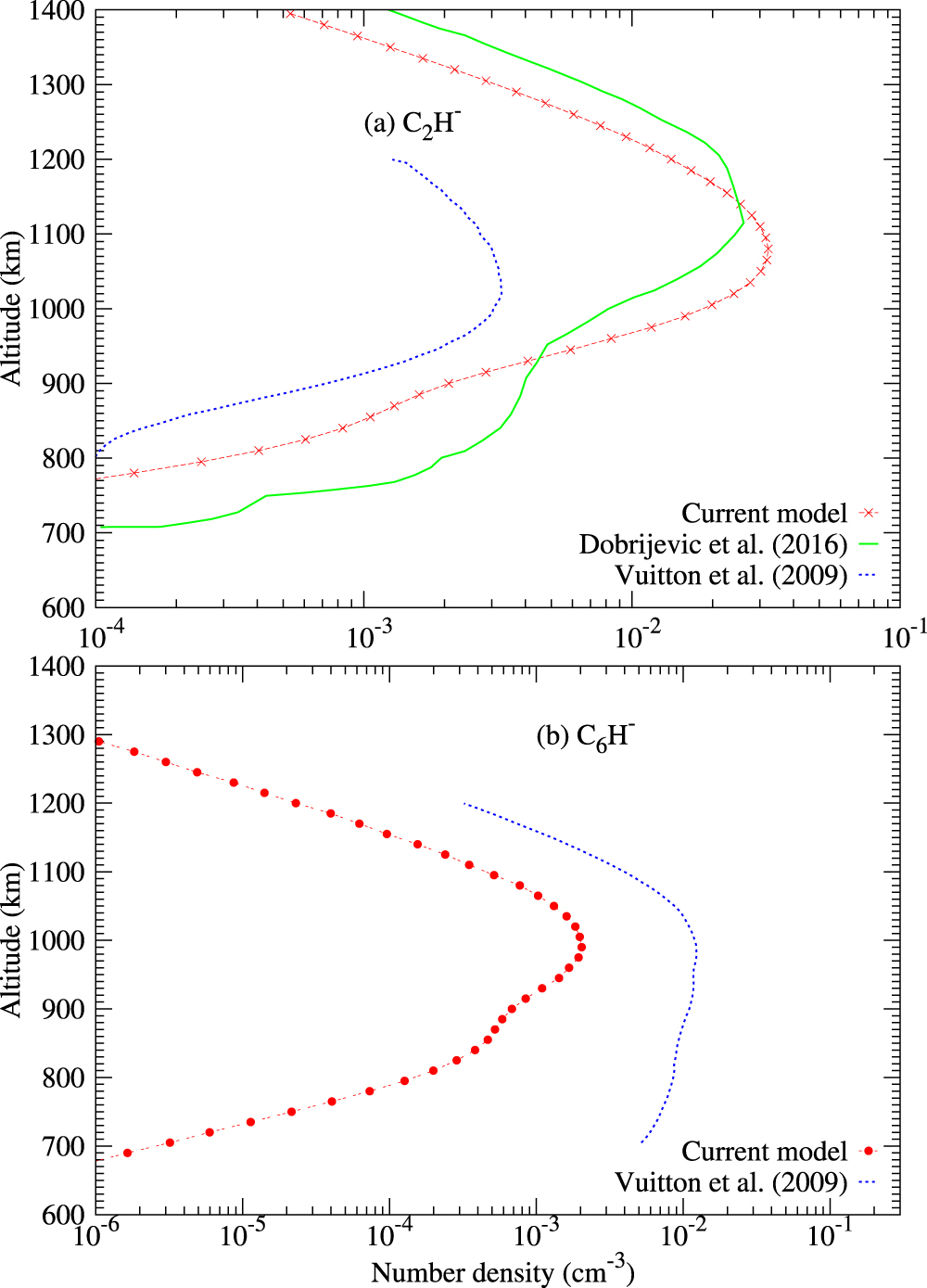

Caption: Figure 6.

Density profiles of (a) C₂H⁻ and (b) C₆H⁻ calculated using the current model compared with the calculations of Vuitton et al. (2009) and Dobrijevic et al. (2016).
