Figure 23 from Bipolar Jets Launched by a Mean-field Accretion Disk Dynamo

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

Bipolar Jets Launched by a Mean-field Accretion Disk Dynamo

Authors: Christian Fendt, and Dennis Gaßmann

2018 The Astrophysical Journal 855 130.

Provider: AAS Journals

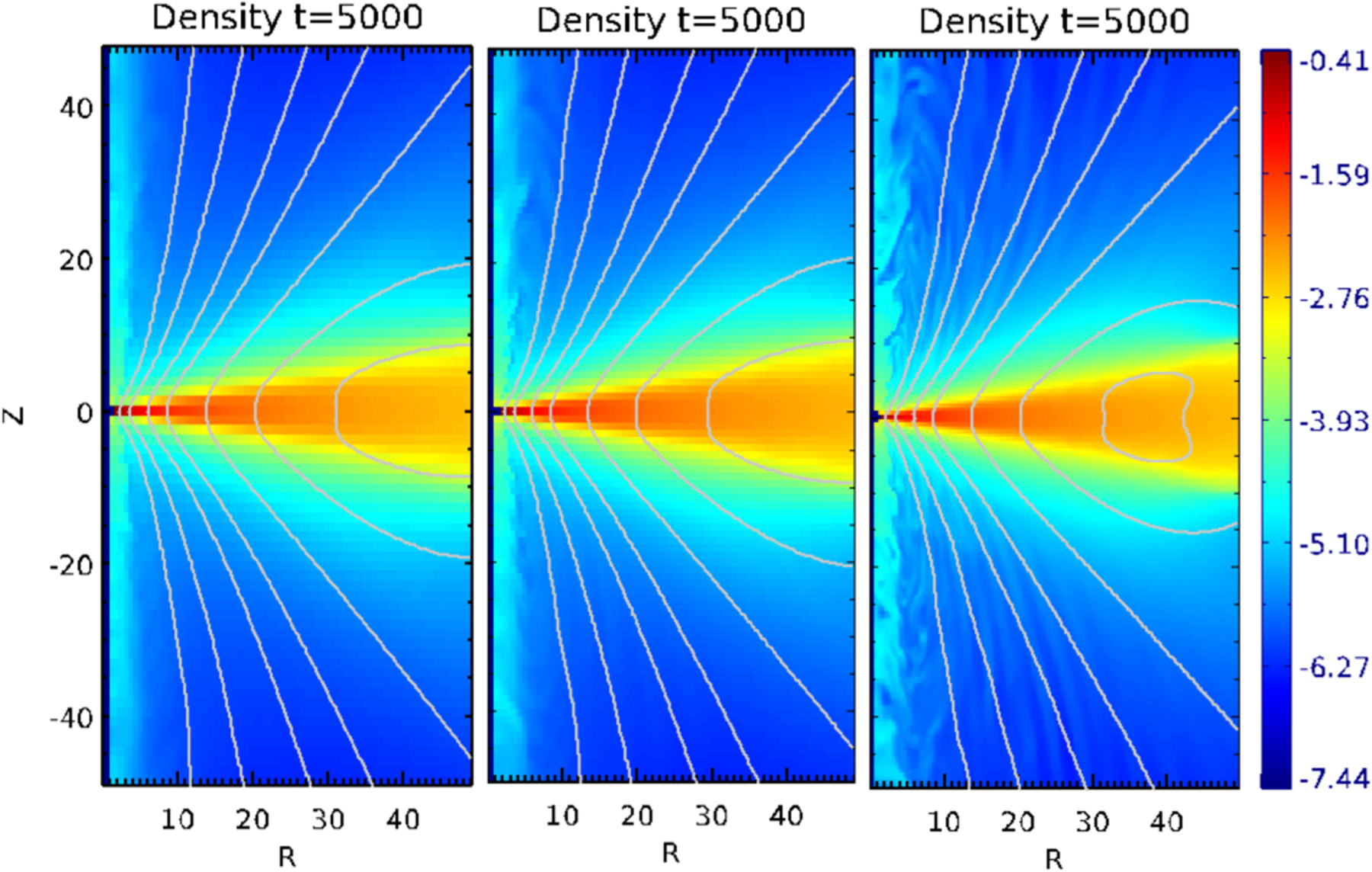

Caption: Figure 23.

Resolution study. Density distribution (color) and poloidal magnetic field (gray lines) at time step t = 5000. The number of grid elements ﹩[{N}_{{\rm{R}}}\times {N}_{\theta }]﹩ is [384 × 192], [512 × 256] (reference simulation), and [1024 × 512] (from left to right).
