Figure 1 from Electron and Proton Heating in Transrelativistic Magnetic Reconnection

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

Electron and Proton Heating in Transrelativistic Magnetic Reconnection

Authors: Michael E. Rowan, Lorenzo Sironi, and Ramesh Narayan

2017 The Astrophysical Journal 850 29.

Provider: AAS Journals

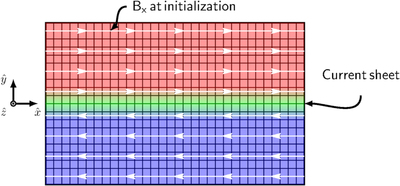

Caption: Figure 1.

Schematic depiction of the reconnection layer initial configuration. Red and blue regions show magnetic field lines of opposite polarity. A hot, overdense component of plasma (green region) balances the magnetic pressure outside the current sheet.
