Figure 6 from STABILITY OF CO2 ATMOSPHERES ON DESICCATED M DWARF EXOPLANETS

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

STABILITY OF CO₂ ATMOSPHERES ON DESICCATED M DWARF EXOPLANETS

Authors: Peter Gao, Renyu Hu, Tyler D. Robinson, Cheng Li, and Yuk L. Yung

2015 The Astrophysical Journal 806 249.

Provider: AAS Journals

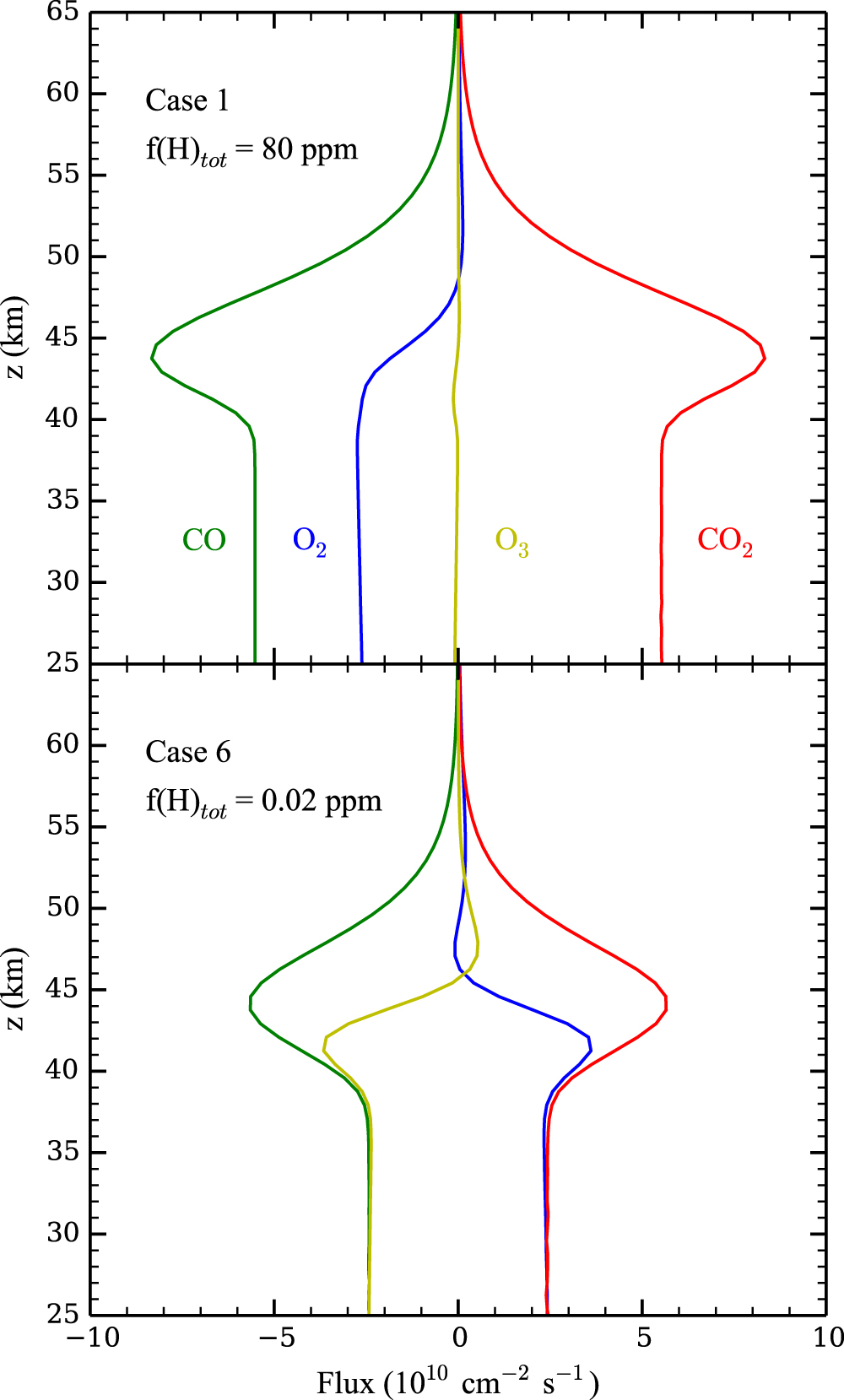

Caption: Figure 6.

Vertical fluxes of O₂ (blue), O₃ (yellow), CO₂ (red), and CO (green) in the lower atmosphere for Cases 1 (top) and 6 (bottom). Upward fluxes are positive while downward fluxes are negative.
