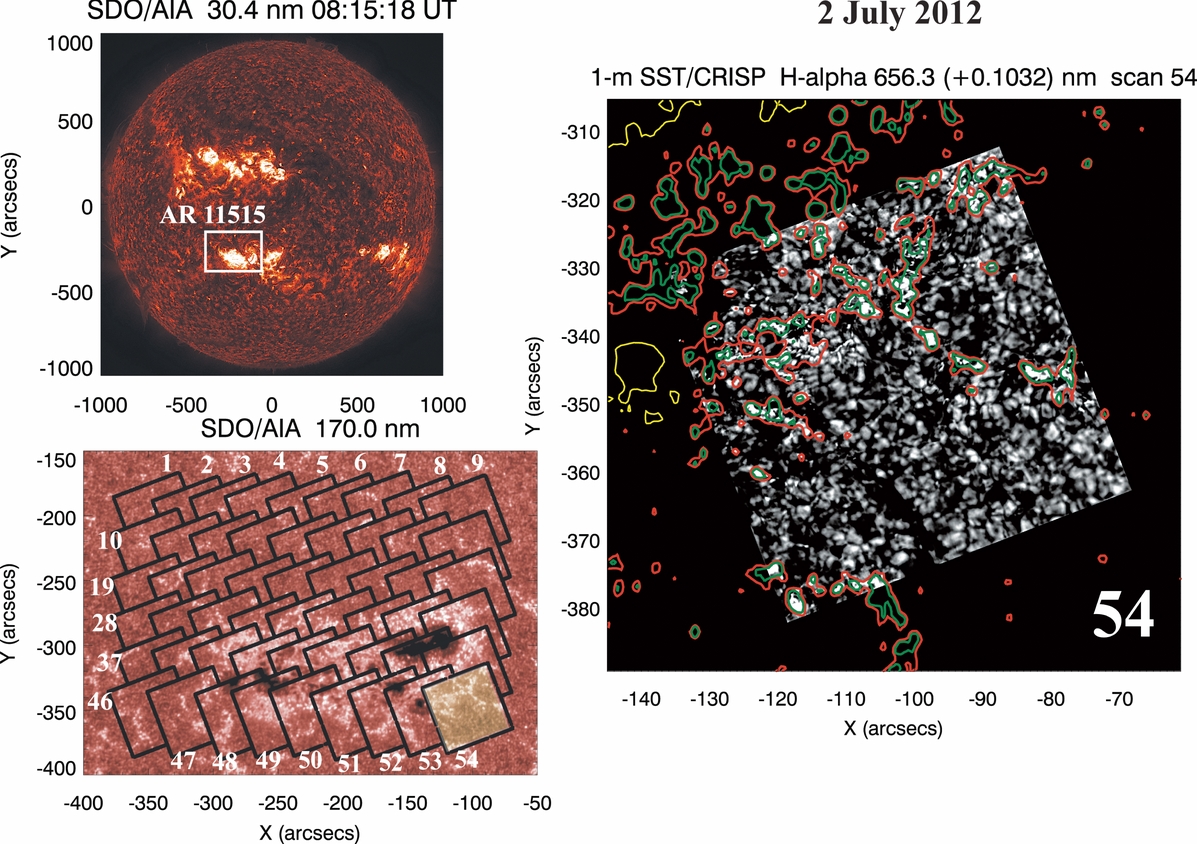

Caption: Figure 1.
Overview of the CRISP 54 grid mosaic of July 2 AR 11515 is presented in the context of SDO/AIA 170.0 nm (lower left) and 30.4 nm (upper left, with the extended FOV boxed) passbands. The order of the 5 minute scan sequence (which was repeated once over a 10 minute interval) is depicted (lower left) as a series of overlapping segments corrected for solar tilt. The accurate co-alignment of bright points in 170.0 nm (contoured in green and yellow), with coincident bright points in the grayscale Hα continuum image from CRISP, is presented for grid segment No. 54 (right).
