Magnetic Effects in Hot Jupiter Atmospheres

Rogers & Komacek 2014 The Astrophysical Journal 794 132.

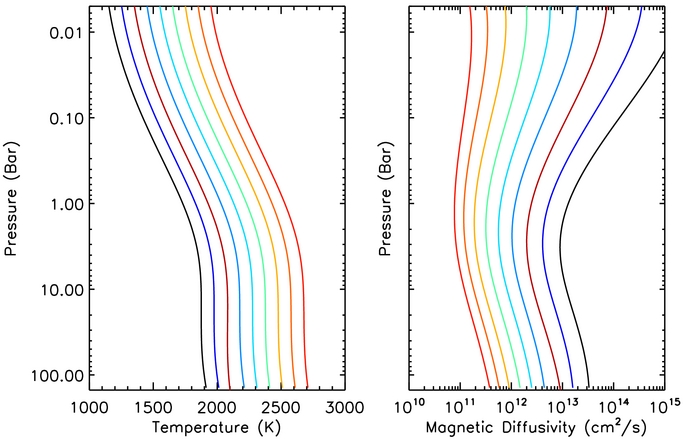

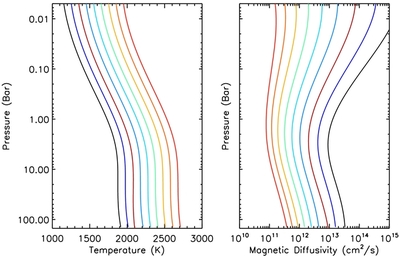

Caption: Figure 1.

(a) Temperature-pressure profiles for models M1–M9 (left to right). (b) Magnetic diffusivity-pressure profiles for models M1–M9 (right to left).
