The PAndAS Field of Streams: Stellar Structures in the Milky Way Halo toward Andromeda and Triangulum

Authors: Nicolas F. Martin, Rodrigo A. Ibata, R. Michael Rich, Michelle L. M. Collins, Mark A. Fardal, Michael J. Irwin, Geraint F. Lewis, Alan W. McConnachie, Arif Babul, Nicholas F. Bate, Scott C. Chapman, Anthony R. Conn, Denija Crnojević, Annette M. N. Ferguson, A. Dougal Mackey, Julio F. Navarro, Jorge Peñarrubia, Nial T. Tanvir, and David Valls-Gabaud

Martin et al. 2014 The Astrophysical Journal 787 19.

Provider: AAS Journals

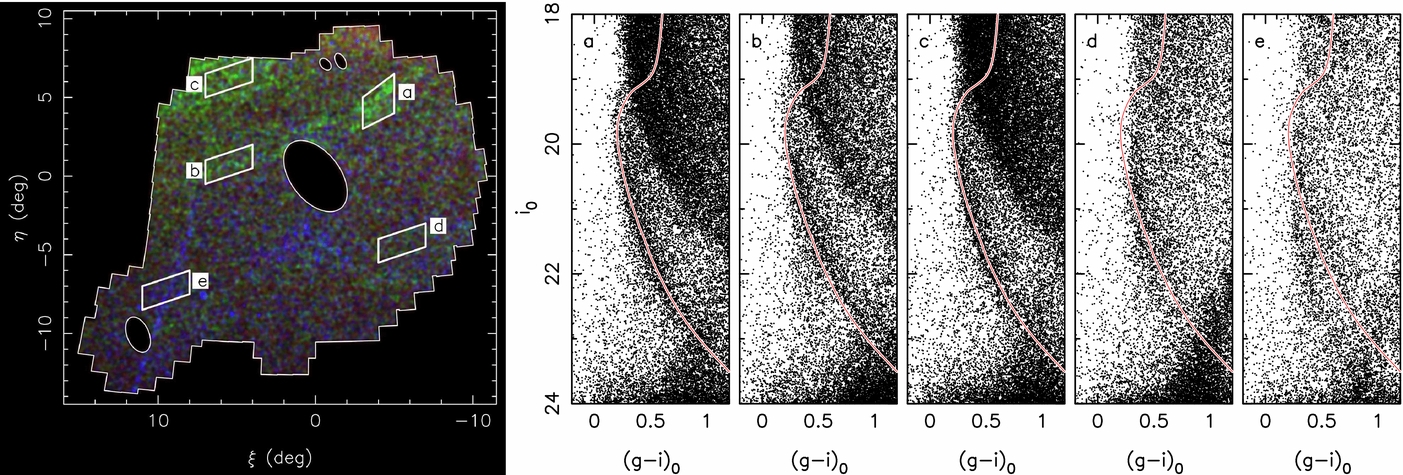

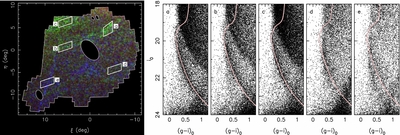

Caption: Figure 4.

Color–magnitude diagrams of five 4.5 deg² fields in the PAndAS footprint. The locations of the fields are highlighted in the map displayed in the left-most panel, which reproduces Figure 3. All five fields have the same coverage and target regions of interest, as described in the text (see Section 3.3). A Dartmouth isochrone of age 10 Gyr, metallicity [Fe/H] = −1.5 (Dotter et al. 2007), and [α/Fe] = +0.2, shifted to a distance modulus of 16.2 (i.e., a distance of 17 kpc), is overlaid on the CMDs and shows a good match with the MS and MSTO of fields (a) and (c).
