Figure 5 from Short Dynamic Fibrils in Sunspot Chromospheres

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

Short Dynamic Fibrils in Sunspot Chromospheres

Authors: L. Rouppe van der Voort and J. de la Cruz Rodríguez

Rouppe van der Voort & de la Cruz Rodríguez 2013 The Astrophysical Journal 776 56.

Provider: AAS Journals

Caption: Figure 5.

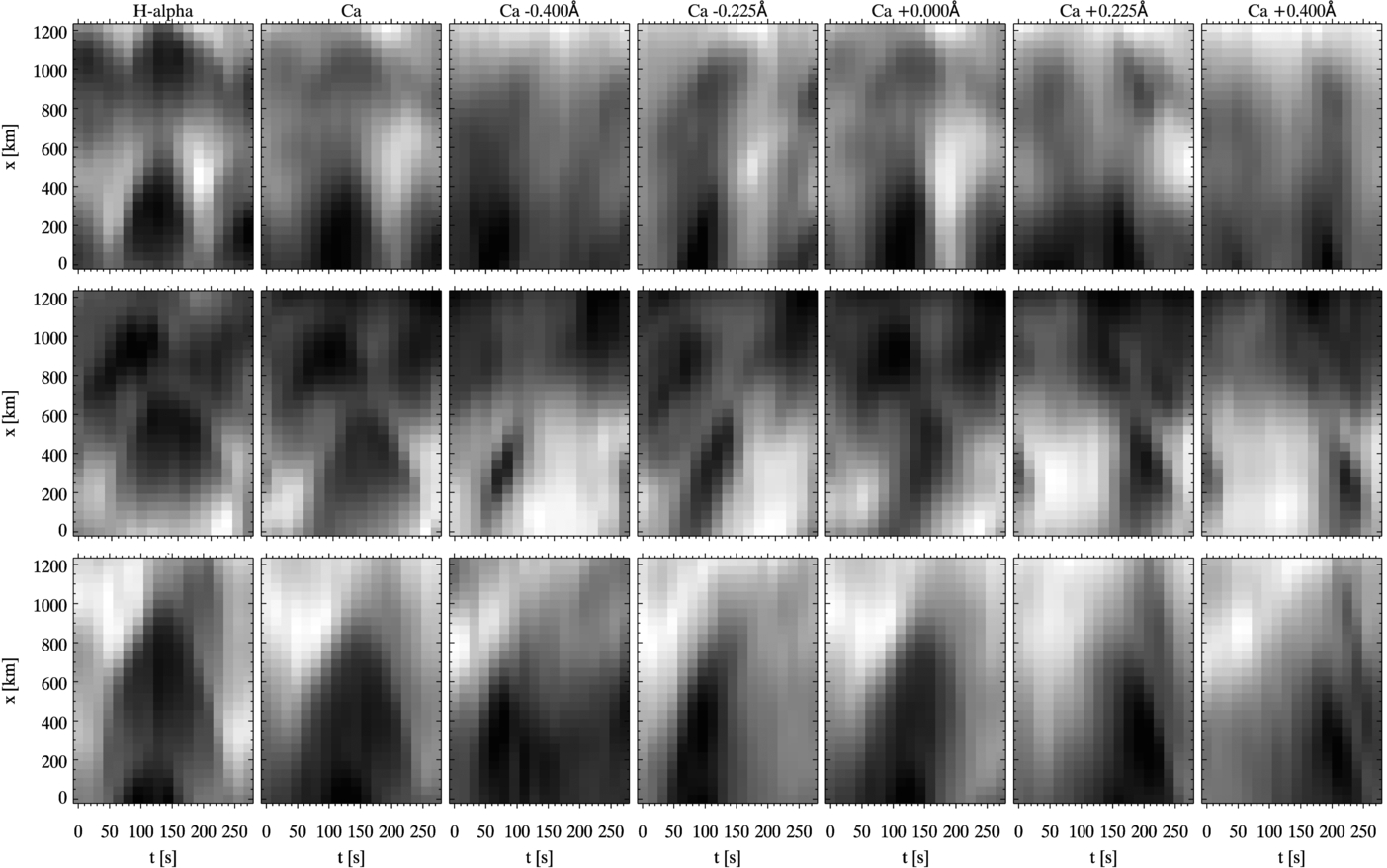

xt diagrams for three different dynamic fibrils in various diagnostics marked at the top of the columns. Top row: umbral dynamic fibril, middle row: dynamic fibril in light bridge, bottom row: penumbral dynamic fibril. The column marked "Ca" is the Ca ii 8542 line minimum intensity; "Ca +0.000 Å" is at the nominal line center at 8542 Å.
