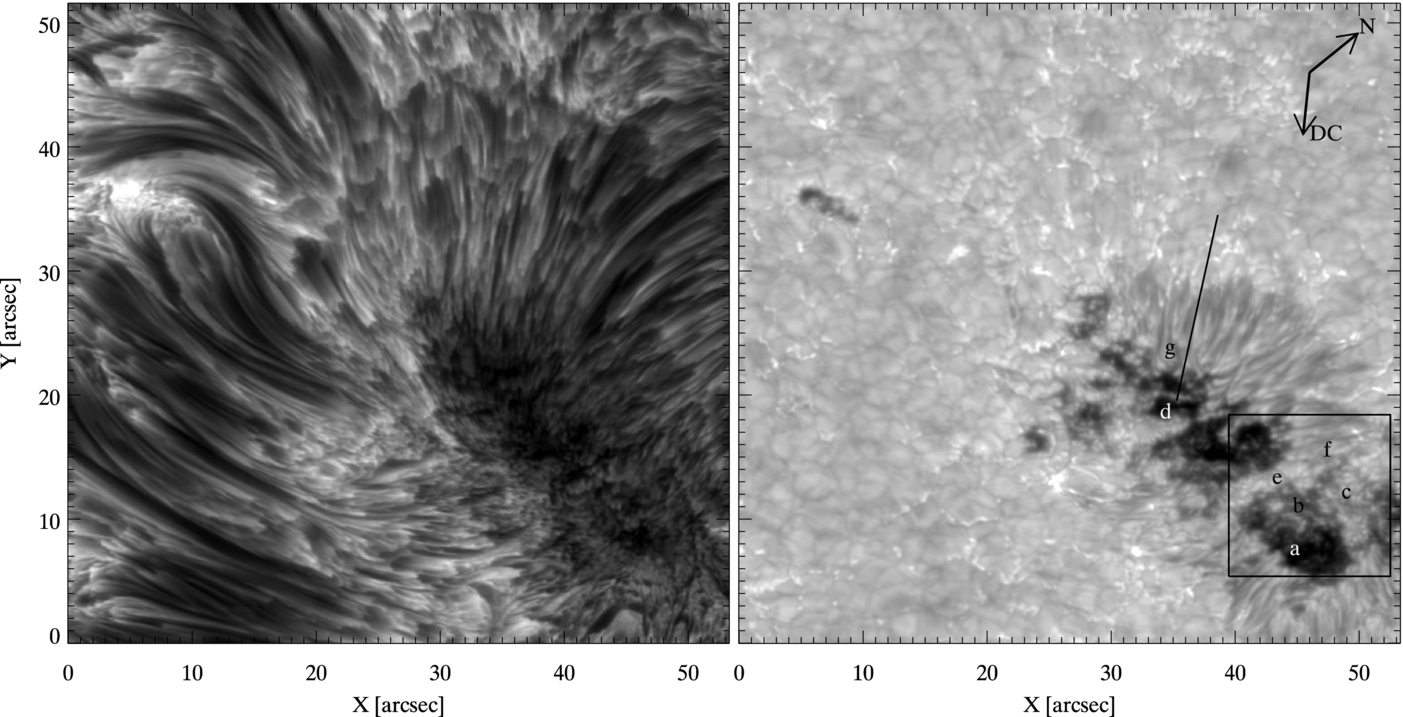

Overview of the observed area. The left panel shows the Hα line core and the right panel shows the cotemporal wideband image of the FWHM 4.9 CRISP prefilter centered on Hα. The square in the lower right outlines the region shown in more detail in Figure 2. The solid line marks the position of the xt-slice shown in Figure 3. The letters a–g mark locations for the λ t-diagrams in Figure 6. The arrows point in the direction of solar north and disk center.

(An animation of this figure is available in the online journal.)
