AKARI Observation of the North Ecliptic Pole (NEP) Supercluster at z = 0.087: Mid-infrared View of Transition Galaxies

  • Authors: Jongwan Ko, Myungshin Im, Hyung Mok Lee, Myung Gyoon Lee, Seong Jin Kim, Hyunjin Shim, Yiseul Jeon, Ho Seong Hwang, Christopher N. A. Willmer, Matthew A. Malkan, Casey Papovich, Benjamin J. Weiner, Hideo Matsuhara, Shinki Oyabu, and Toshinobu Takagi

Ko et al. 2012 The Astrophysical Journal 745 181.

  • Provider: AAS Journals

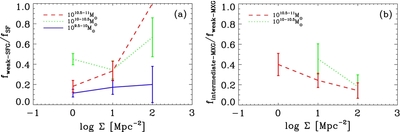

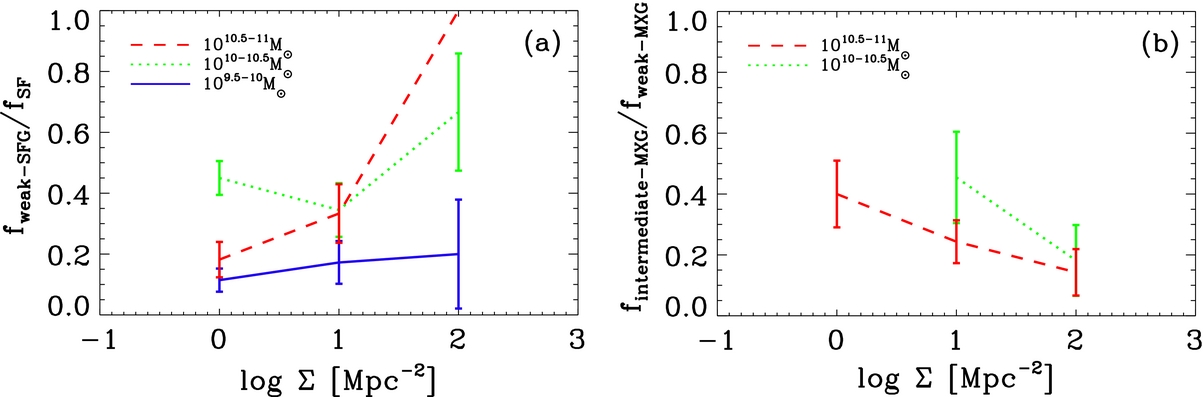

Caption: Figure 25.

Left: the fraction of weak-SFG among SF galaxies (weak-, dusty-, and blue-SFGs) is plotted as a function of local density in three stellar mass bins: log M */ M = [9.5, 10], [10, 10.5], and [10.5, 11]. Right: the relative fraction of the intermediate-MXG vs. the weak-MXG is plotted as a function of local density in two stellar mass bins: log M */ M = [10, 10.5] and [10.5, 11]. Because of the cut in S11, less-massive (log M */ M < 10) MIR-blue (N3 − S11 < 0) galaxies are not detected.
