Figure 9 from Simulating the Effects of Initial Pitch-angle Distributions on Solar Flares

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

Simulating the Effects of Initial Pitch-angle Distributions on Solar Flares

Authors: Henry D. Winter, Petrus Martens, and Katharine K. Reeves

Winter, Martens, & Reeves 2011 The Astrophysical Journal 735 103.

Provider: AAS Journals

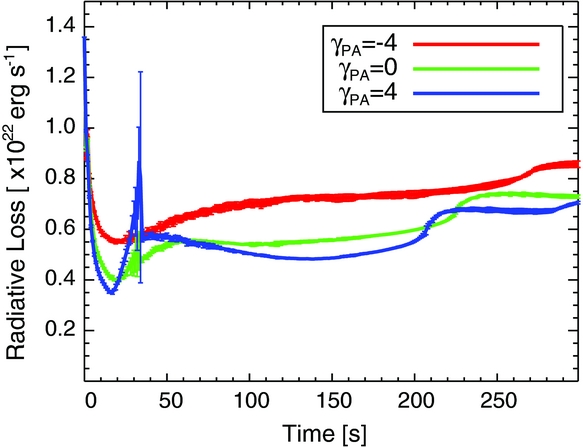

Caption: Figure 9.

Thermal radiative loss rates integrated along the loop length, as a function of time, or the γ _PA = −4 (red), γ _PA = 0 (green), and γ _PA = 4 (blue) cases. Each value is averaged over 50 runs and the error bars denote one standard deviation.
