Figure 5 from The Infrared Jet in 3C 31

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

The Infrared Jet in 3C 31

Authors: Lauranne Lanz, Amelia Bliss, Ralph P. Kraft, Mark Birkinshaw, Dharam V. Lal, William R. Forman, Christine Jones, and Diana M. Worrall

Lanz et al. 2011 The Astrophysical Journal 731 52.

Provider: AAS Journals

Caption: Figure 5.

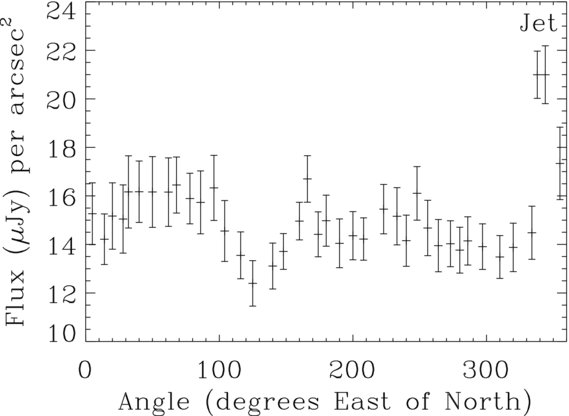

Azimuthal profile of the total 8.0 μm emission for an elliptical annulus with inner and outer radii of 12'' (5.2 kpc) and 20'' (8.6 kpc) with an ellipticity of 0.84. Angles are given counterclockwise from north. The jet is located at 330°–350°.
