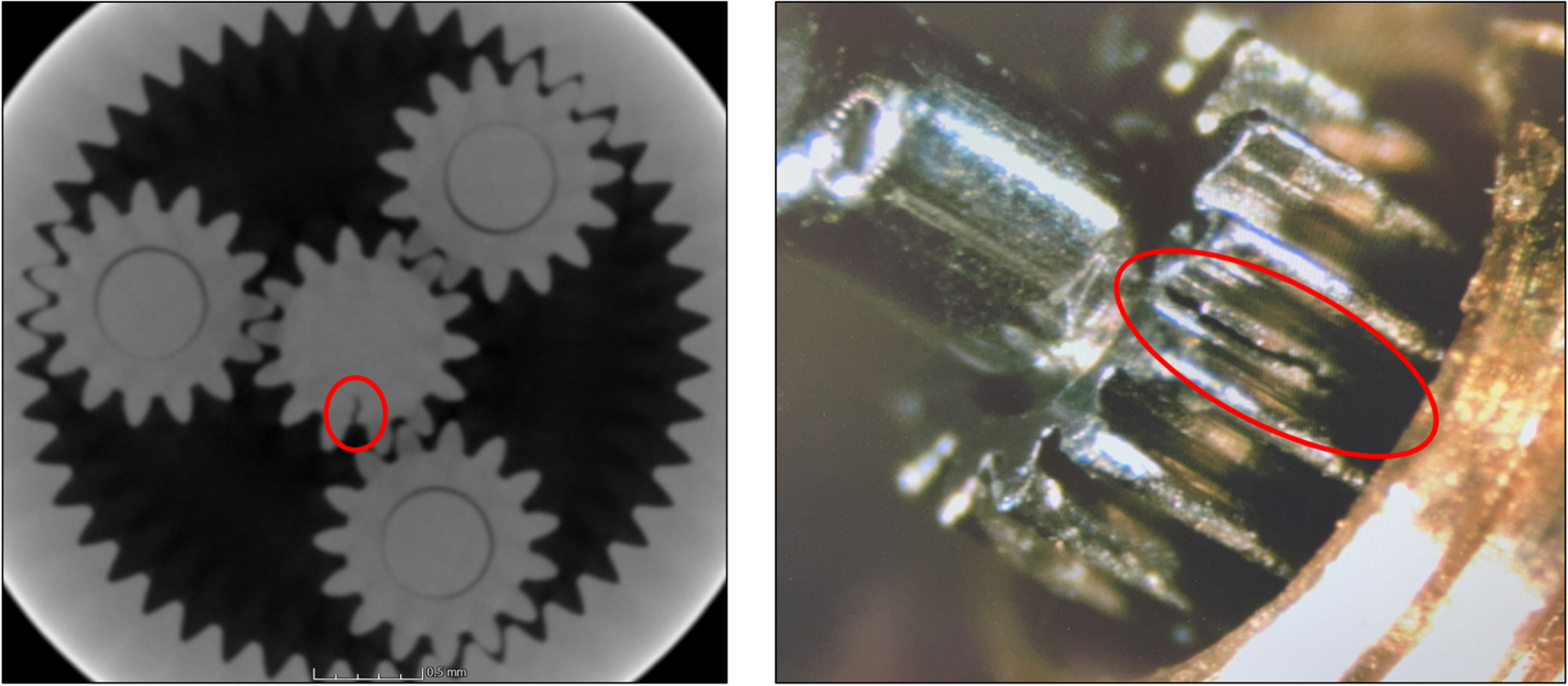

Caption: Figure 37.
X-ray (left) and optical (right) views of a typical cracked pinion gear. In the right-hand view, one can see how the pinion has slipped down the shaft (normally it would be flush to the shaft tip, in the upper corner left of the image).
