Caption: Figure 32.

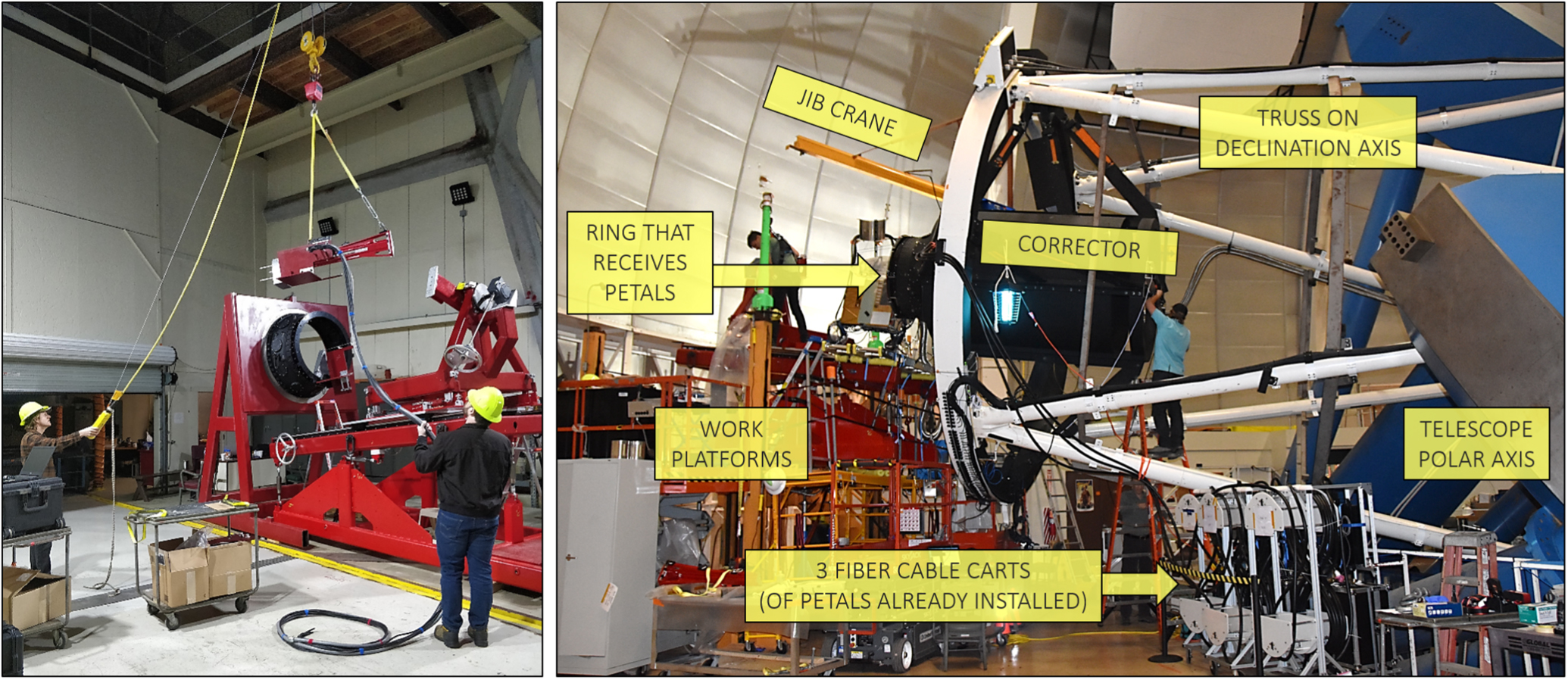

At left is a mock installation trial in the Mayall Garage. The FPD (black ring) is mounted on a steel A-frame with a height, inclination, and bolt interface matching the corrector barrel on the telescope (when mounted on the southeast work platform). At the right is an overview picture of the real installation, taken during the insertion of our third petal into the telescope. The installation is done with the telescope parked at the SE platform of the dome.
