Caption: Figure 26.

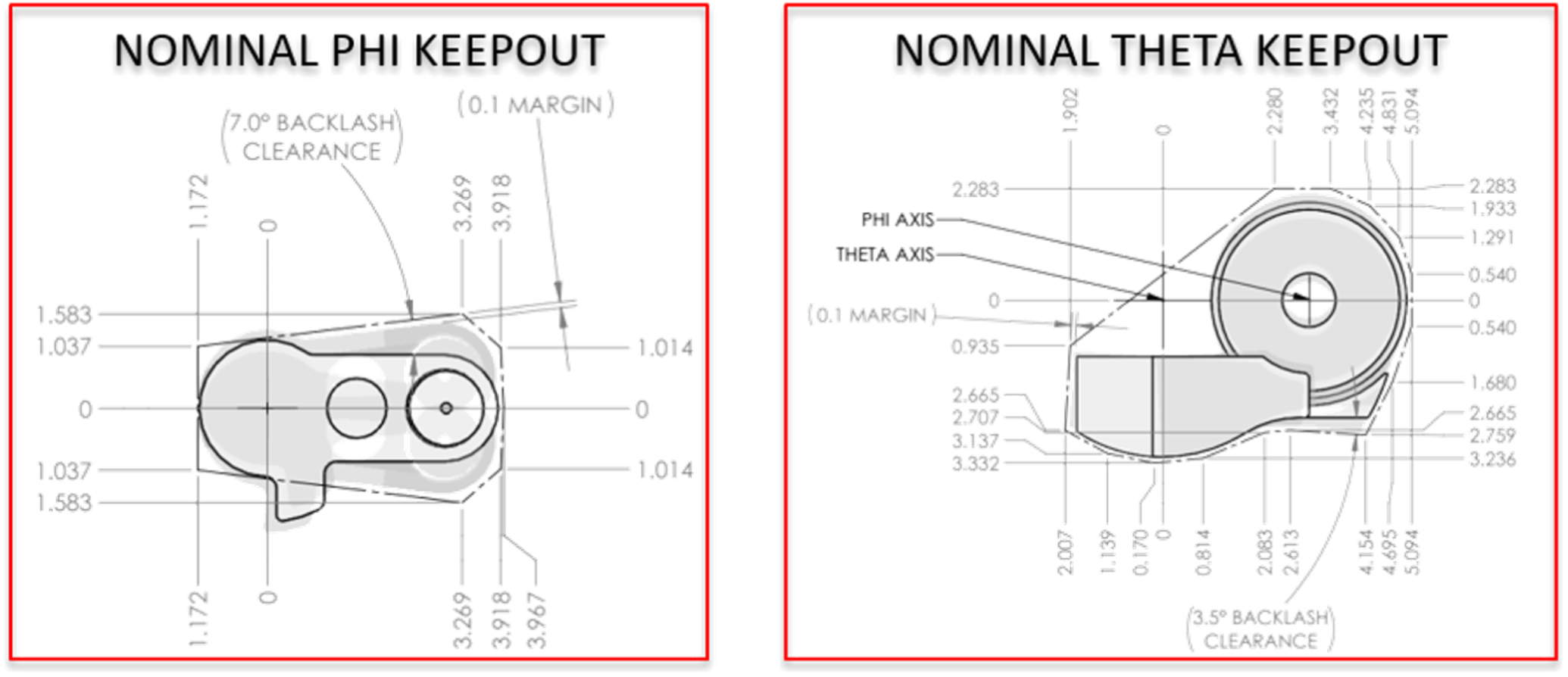

2D polygon keep-out zones drawn around the two moving bodies of each positioner. Additional polygons (not shown) gracefully provide the system with fixed boundaries at the petal-to-petal edges and around the GFA cameras.
