Caption: Figure 20.

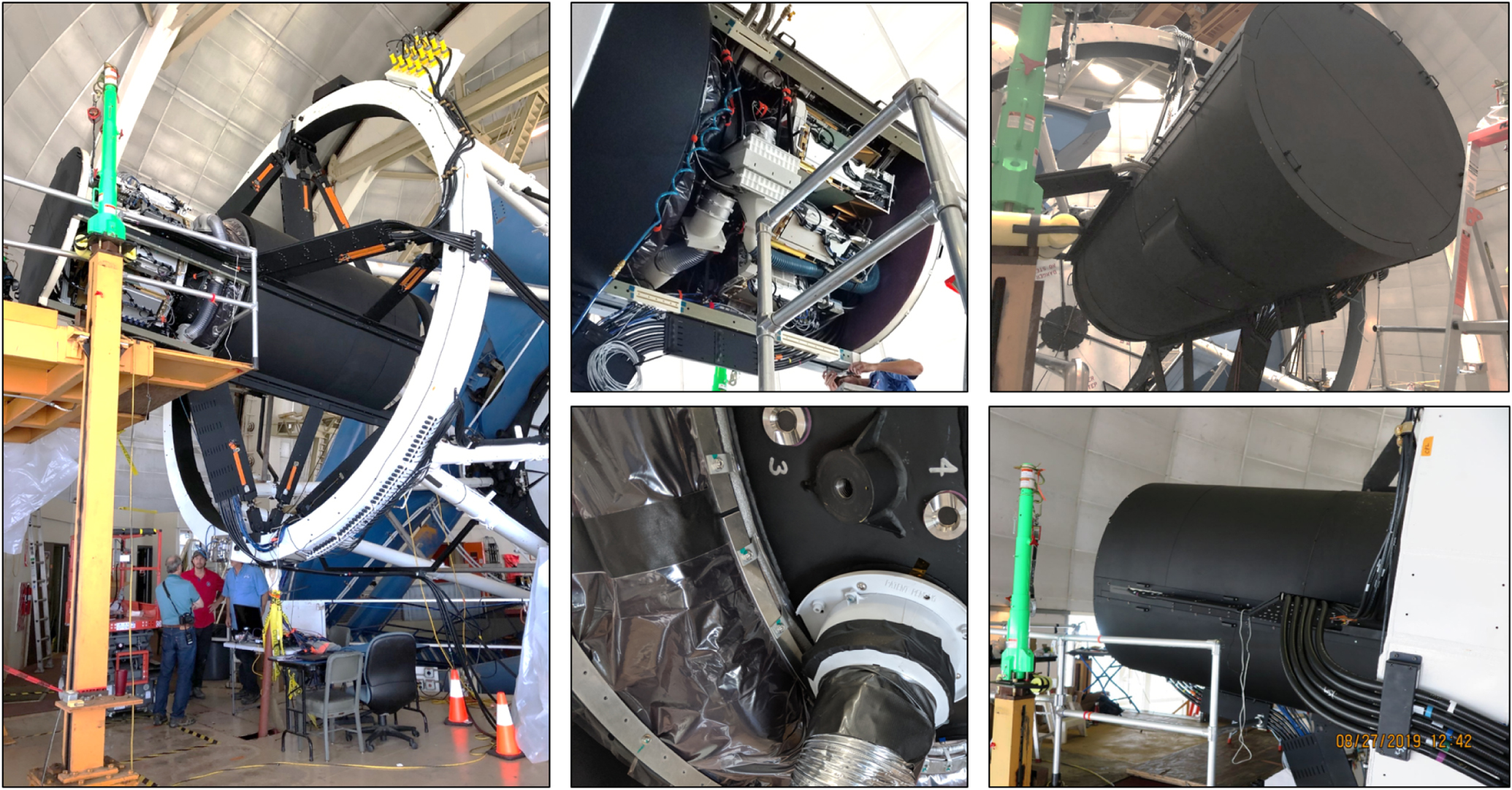

The thermal enclosure, shown with side panels off (left and center) and on (right). The heat exchanger can be seen in the upper center photo, surrounded by white MERV filter holders. The duct just below the heat exchanger wraps around the focal plane, injecting diffuse air flows at several ports into the volume between the C4 lens and the robots. At the lower center, the flexible air skirt is visible, adjacent to an air duct feeding into the FPD (the support structure that surrounds the volume between the C4 lens and the robot array).
