Caption: Figure 17.

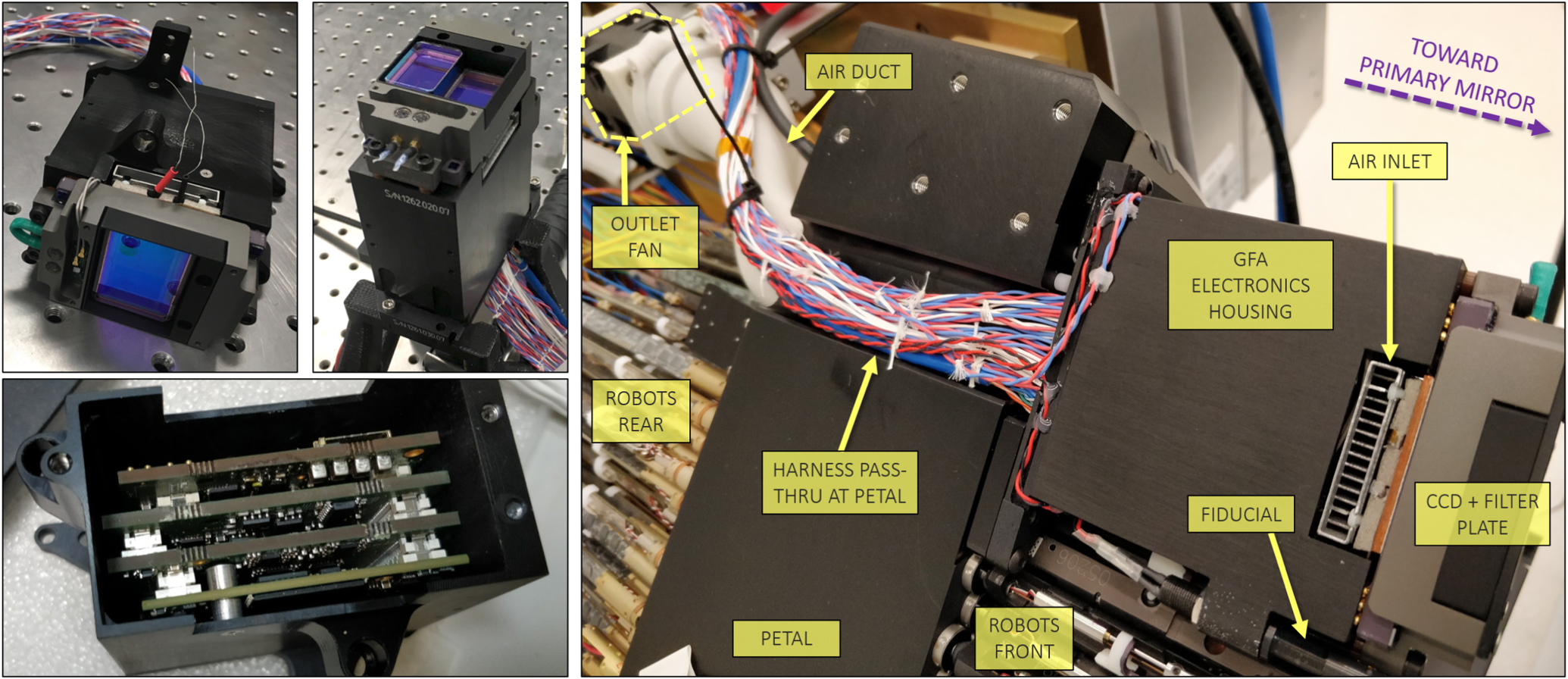

Guider and wave front cameras (upper left) are identical other than their flat versus stepped filters. A compact electronics design (lower left) minimizes the footprint of the camera so that it consumes little more than the size of the CCD package itself in the focal plane. Cooling air and electrical harness pass through the petal (right).
