TOI 560: Two Transiting Planets Orbiting a K Dwarf Validated with iSHELL, PFS, and HIRES RVs

  • Authors: Mohammed El Mufti, Peter P. Plavchan, Howard Isaacson, Bryson L. Cale, Dax L. Feliz, Michael A. Reefe, Coel Hellier, Keivan Stassun, Jason Eastman, Alex Polanski, Ian J. M. Crossfield, Eric Gaidos, Veselin Kostov, Justin M. Wittrock, Joel Villaseñor, Joshua E. Schlieder, Luke G. Bouma, Kevin I. Collins, Farzaneh Zohrabi, Rena A. Lee, Ahmad Sohani, John Berberian, David Vermilion, Patrick Newman, Claire Geneser, Angelle Tanner, Natalie M. Batalha, Courtney Dressing, Benjamin Fulton, Andrew W. Howard, Daniel Huber, Stephen R. Kane, Erik A. Petigura, Paul Robertson, Arpita Roy, Lauren M. Weiss, Aida Behmard, Corey Beard, Ashley Chontos, Fei Dai, Paul A. Dalba, Tara Fetherolf, Steven Giacalone, Michelle L. Hill, Lea A. Hirsch, Rae Holcomb, Jack Lubin, Andrew Mayo, Teo Močnik, Joseph M. Akana Murphy, Lee J. Rosenthal, Ryan A. Rubenzahl, Nicholas Scarsdale, Christopher Stockdale, Karen Collins, Ryan Cloutier, Howard Relles, Thiam-Guan Tan, Nicholas J Scott, Zach Hartman, Elisabeth Matthews, David R. Ciardi, Erica Gonzales, Rachel A. Matson, Charles Beichman, Allyson Bieryla, E. Furlan, Crystal L. Gnilka, Steve B. Howell, Carl Ziegler, César Briceño, Nicholas Law, Andrew W. Mann, Markus Rabus, Marshall C. Johnson, Jessie Christiansen, Laura Kreidberg, David Anthony Berardo, Drake Deming, Varoujan Gorjian, Farisa Y. Morales, Björn Benneke, Diana Dragomir, Robert A. Wittenmyer, Sarah Ballard, Brendan P. Bowler, Jonathan Horner, John Kielkopf, Huigen Liu, Avi Shporer, C. G. Tinney, Hui Zhang, Duncan J. Wright, Brett C. Addison, Matthew W. Mengel, Jack Okumura

Mohammed El Mufti et al 2023 The Astronomical Journal 165 .

  • Provider: AAS Journals

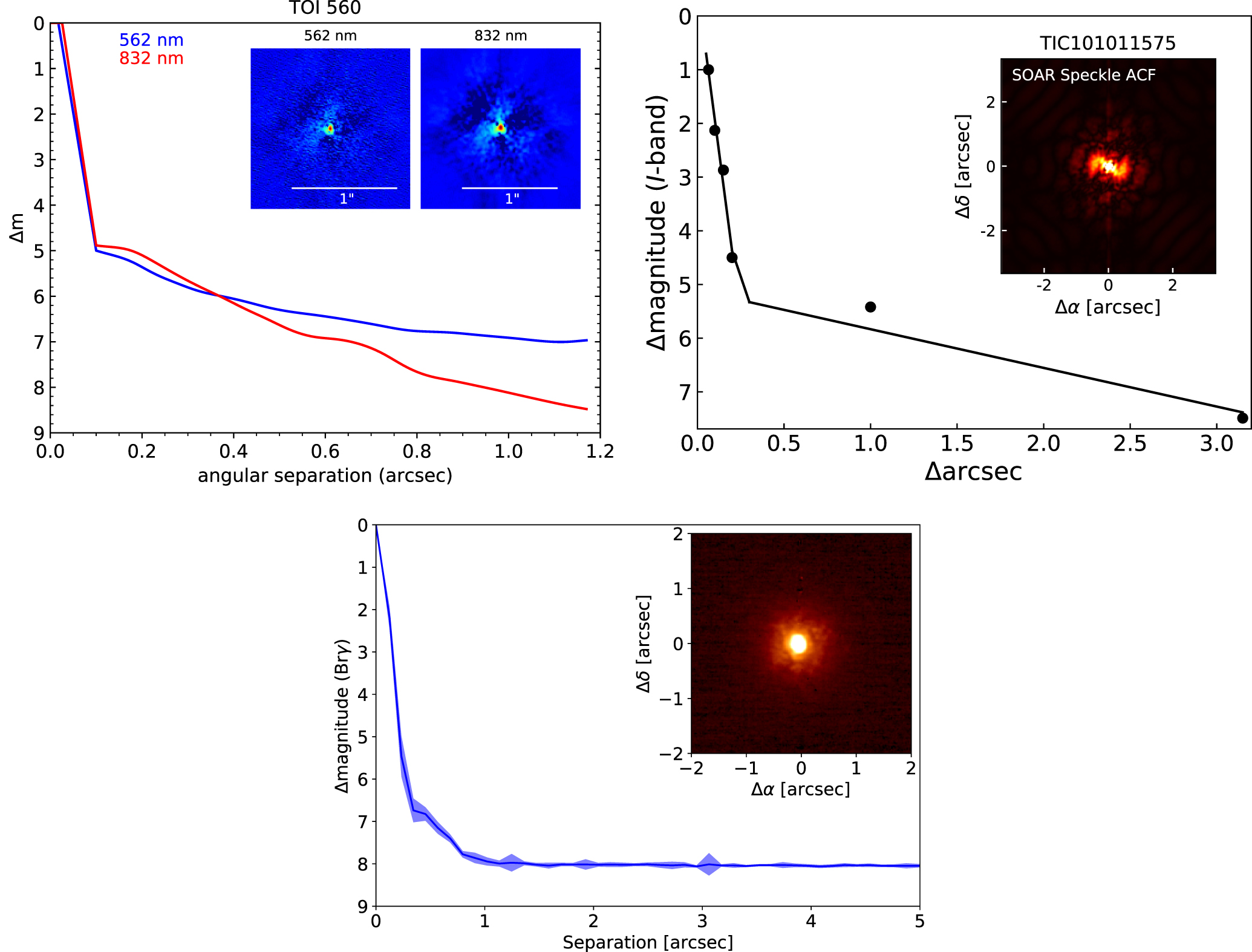

Caption: Figure 7.

Top left: our 5σ contrast curves and the reconstructed speckle images observed using the Zorro speckle instrument on the Gemini South 8 m telescope. Sensitivity is quoted on the vertical axis in magnitudes relative to the host star, as a function of angular separation on the horizontal axis. Inset: a cutout of our image, centered on the target star TOI 560. Top right: same as top-left, showing the 5σ detection sensitivity and speckle autocorrelation functions from the SOAR observations. Bottom: same as the top two panels, showing our sensitivity of the Gemini/NIRI observations to companion stars, as a function of separation from the host star. No visual companions are seen anywhere in all of our high-contrast imaging data, and the star appears single.
