Performance Verification of the EXtreme PREcision Spectrograph

Authors: Ryan T. Blackman, Debra A. Fischer, Colby A. Jurgenson, David Sawyer, Tyler M. McCracken, Andrew E. Szymkowiak, Ryan R. Petersburg, J. M. Joel Ong, John M. Brewer, Lily L. Zhao, Christopher Leet, Lars A. Buchhave, René Tronsgaard, Joe Llama, Travis Sawyer, Michael Shao, Russell Trahan, Bijan Nemati, Matteo Genoni, Giorgio Pariani, Marco Riva, Paul Fournier, Rafal Pawluczyk, Allen B. Davis, and Samuel H. C. Cabot

2020 The Astronomical Journal 159 238.

Provider: AAS Journals

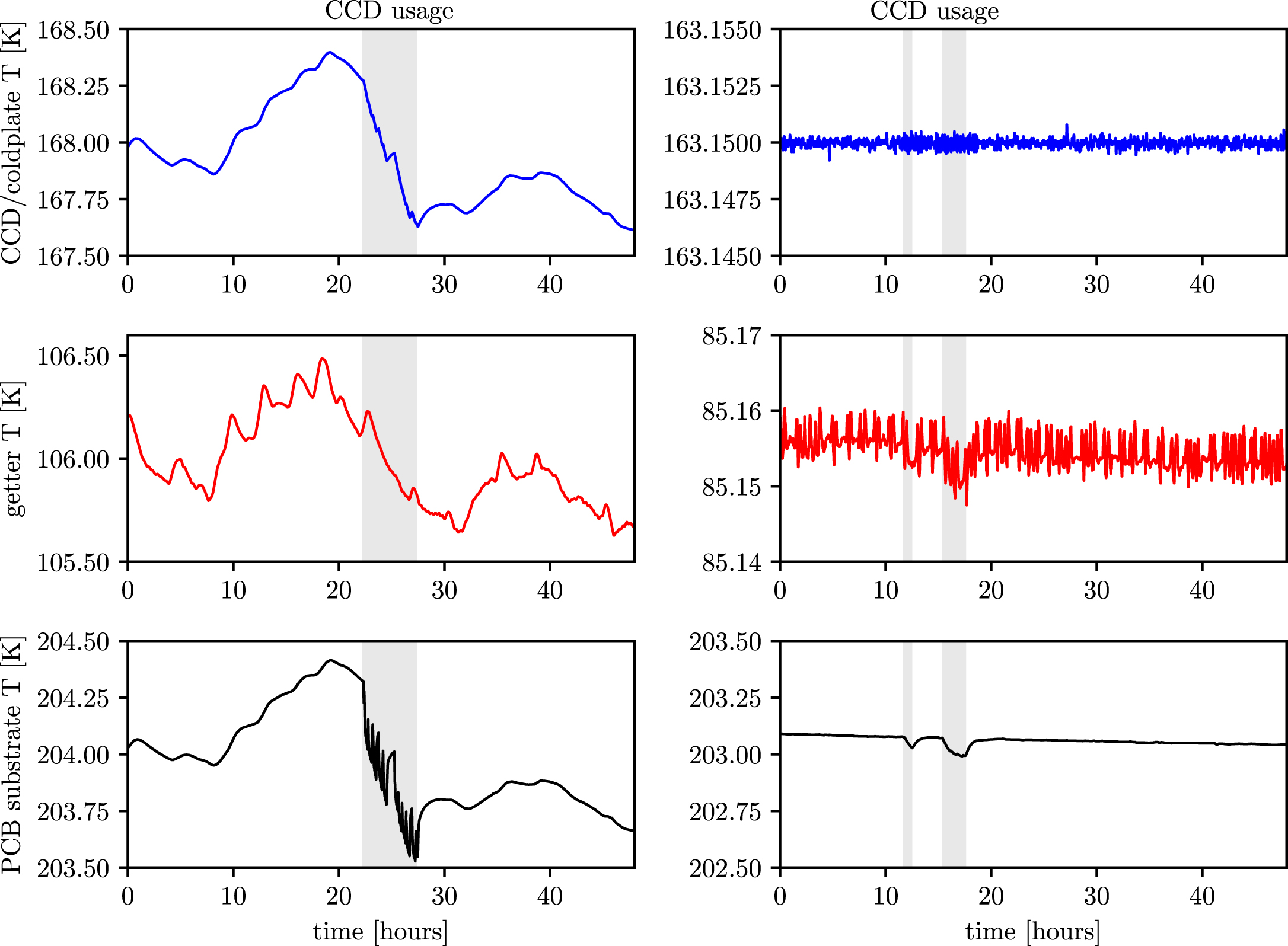

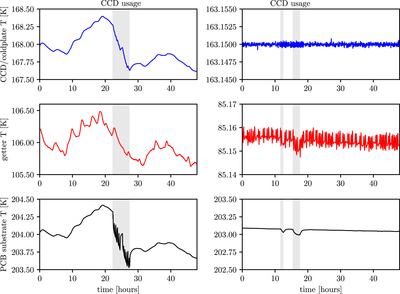

Caption: Figure 20.

Temperature drifts in the CCD/coldplate, getter, and PCB substrate, for time periods before (left panels) and after (right panels) the constant-power mode was implemented. The CCD was in use in the shaded gray regions. Both time periods feature exposures being taken in the middle of the data.
