Performance Verification of the EXtreme PREcision Spectrograph

Authors: Ryan T. Blackman, Debra A. Fischer, Colby A. Jurgenson, David Sawyer, Tyler M. McCracken, Andrew E. Szymkowiak, Ryan R. Petersburg, J. M. Joel Ong, John M. Brewer, Lily L. Zhao, Christopher Leet, Lars A. Buchhave, René Tronsgaard, Joe Llama, Travis Sawyer, Michael Shao, Russell Trahan, Bijan Nemati, Matteo Genoni, Giorgio Pariani, Marco Riva, Paul Fournier, Rafal Pawluczyk, Allen B. Davis, and Samuel H. C. Cabot

2020 The Astronomical Journal 159 238.

Provider: AAS Journals

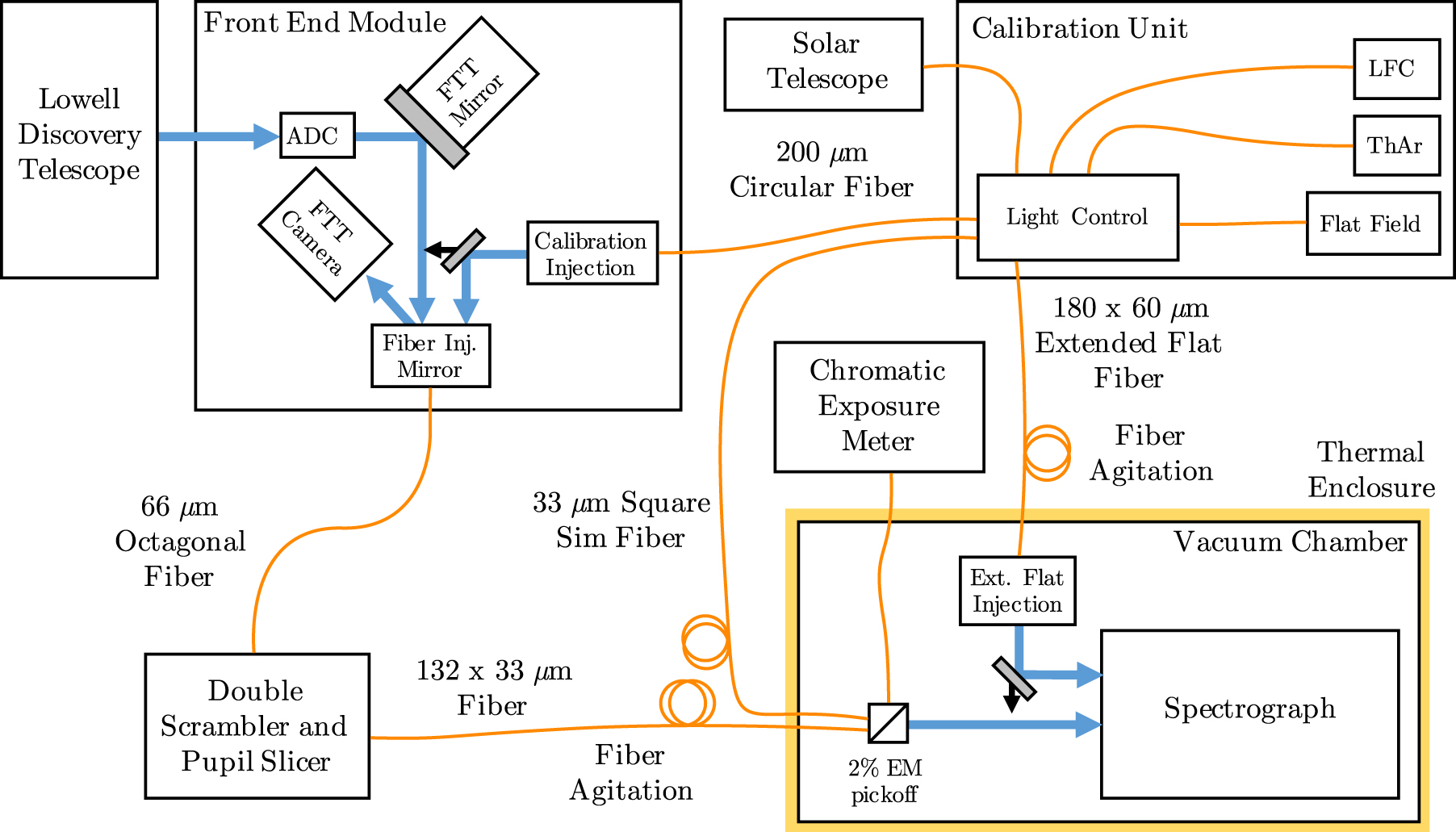

Caption: Figure 1.

A high-level view of the EXPRES optomechanical subsystems that follows the light path from the telescope to the spectrograph. The orange lines are optical fibers, and the blue lines are light in open air.
