Performance Verification of the EXtreme PREcision Spectrograph

Authors: Ryan T. Blackman, Debra A. Fischer, Colby A. Jurgenson, David Sawyer, Tyler M. McCracken, Andrew E. Szymkowiak, Ryan R. Petersburg, J. M. Joel Ong, John M. Brewer, Lily L. Zhao, Christopher Leet, Lars A. Buchhave, René Tronsgaard, Joe Llama, Travis Sawyer, Michael Shao, Russell Trahan, Bijan Nemati, Matteo Genoni, Giorgio Pariani, Marco Riva, Paul Fournier, Rafal Pawluczyk, Allen B. Davis, and Samuel H. C. Cabot

2020 The Astronomical Journal 159 238.

Provider: AAS Journals

Caption: Figure 5.

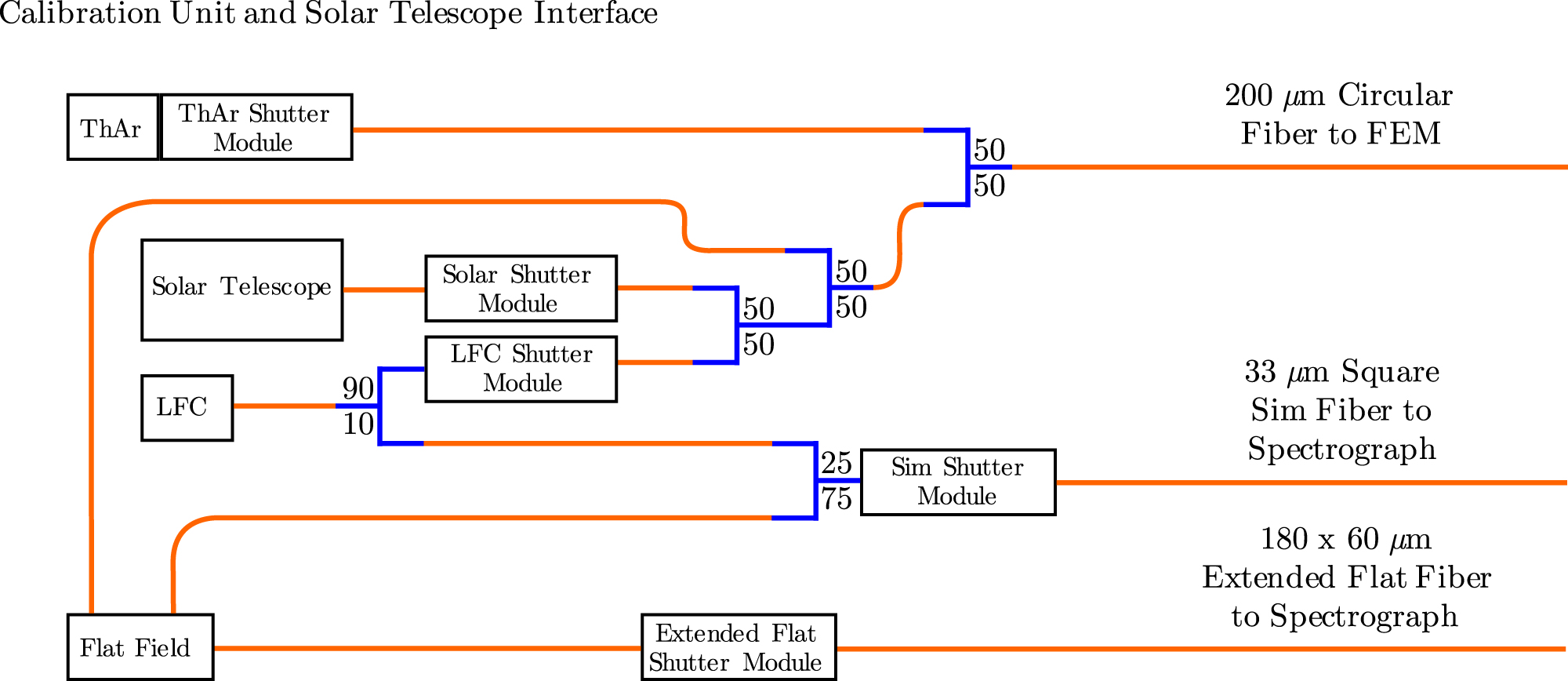

Schematic of the revised calibration unit of EXPRES, including the planned solar telescope implementation for the calibration unit. In this figure, fibers are represented in orange, and blue represents the splitters/combiners.
