How the Geysers, Tidal Stresses, and Thermal Emission across the South Polar Terrain of Enceladus are Related
Authors: Carolyn Porco, Daiana DiNino, and Francis Nimmo
Porco, DiNino, & Nimmo
2014 The Astronomical Journal14845.
Provider: AAS Journals
Caption: Figure 4.

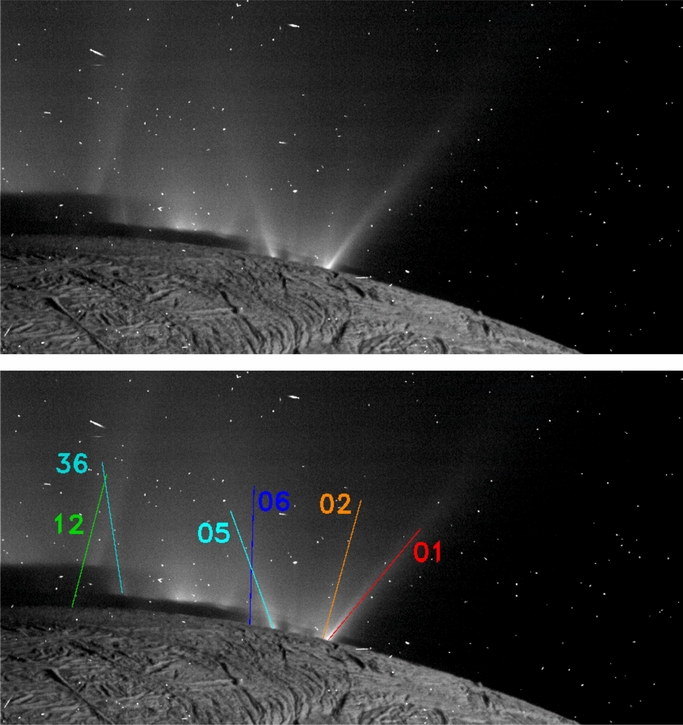

Top: one image, from set EEE, looking approximately broadside to the fractures and showing a handful of obviously tilted jets. Bottom: the 3D models for the selected jets are projected onto the image. (The bright specks are cosmic ray hits recorded in the ISS detector.)
