Modeling the Outflow in the Narrow-line Region of Markarian 573: Biconical Illumination of a Gaseous Disk

Authors: T. C. Fischer, D. M. Crenshaw, S. B. Kraemer, H. R. Schmitt, and M. L. Trippe

FISCHER et al. 2010 The Astronomical Journal 140 577.

Provider: AAS Journals

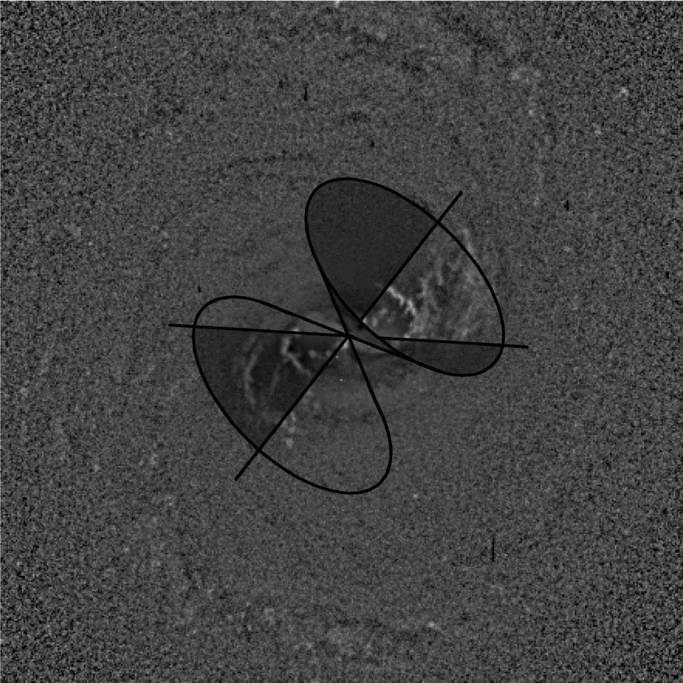

Caption: Figure 5.

Structure map of Mrk 573 with a superimposed geometrical model. Shaded regions represent the surface of the bicone in front of the disk intersection along our line of sight.
