Figure 4 from Modeling the Outflow in the Narrow-line Region of Markarian 573: Biconical Illumination of a Gaseous Disk

Image Details

View Article Bookmark & Share

Choose export citation format:

Export Citation

Hi-Resolution Export to PDF PPT Format

Modeling the Outflow in the Narrow-line Region of Markarian 573: Biconical Illumination of a Gaseous Disk

Authors: T. C. Fischer, D. M. Crenshaw, S. B. Kraemer, H. R. Schmitt, and M. L. Trippe

FISCHER et al. 2010 The Astronomical Journal 140 577.

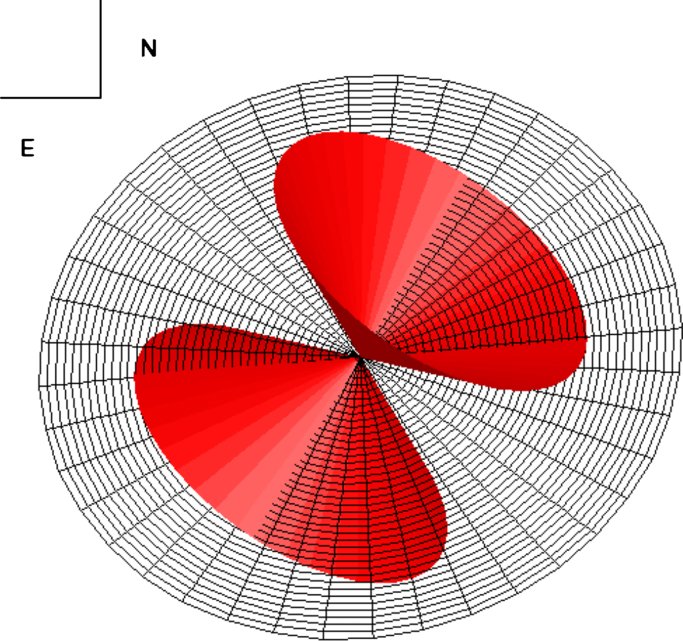

Caption: Figure 4.

Geometric model of the NLR and inner disk in Mrk 573, based on parameters from Table 1, shown as viewed from the Earth.
