SDSS J024634.11−082536.2: A New Gravitationally Lensed Quasar from the Sloan Digital Sky Survey

  • Authors: Naohisa Inada, Scott Burles, Michael D. Gregg, Robert H. Becker, Paul L. Schechter, Daniel J. Eisenstein, Masamune Oguri, Francisco J. Castander, Patrick B. Hall, David E. Johnston, Bartosz Pindor, Gordon T. Richards, Donald P. Schneider, Richard L. White, J. Brinkmann, Alexander S. Szalay, and Donald G. York

Inada et al. 2005 The Astronomical Journal 130 1967.

  • Provider: AAS Journals

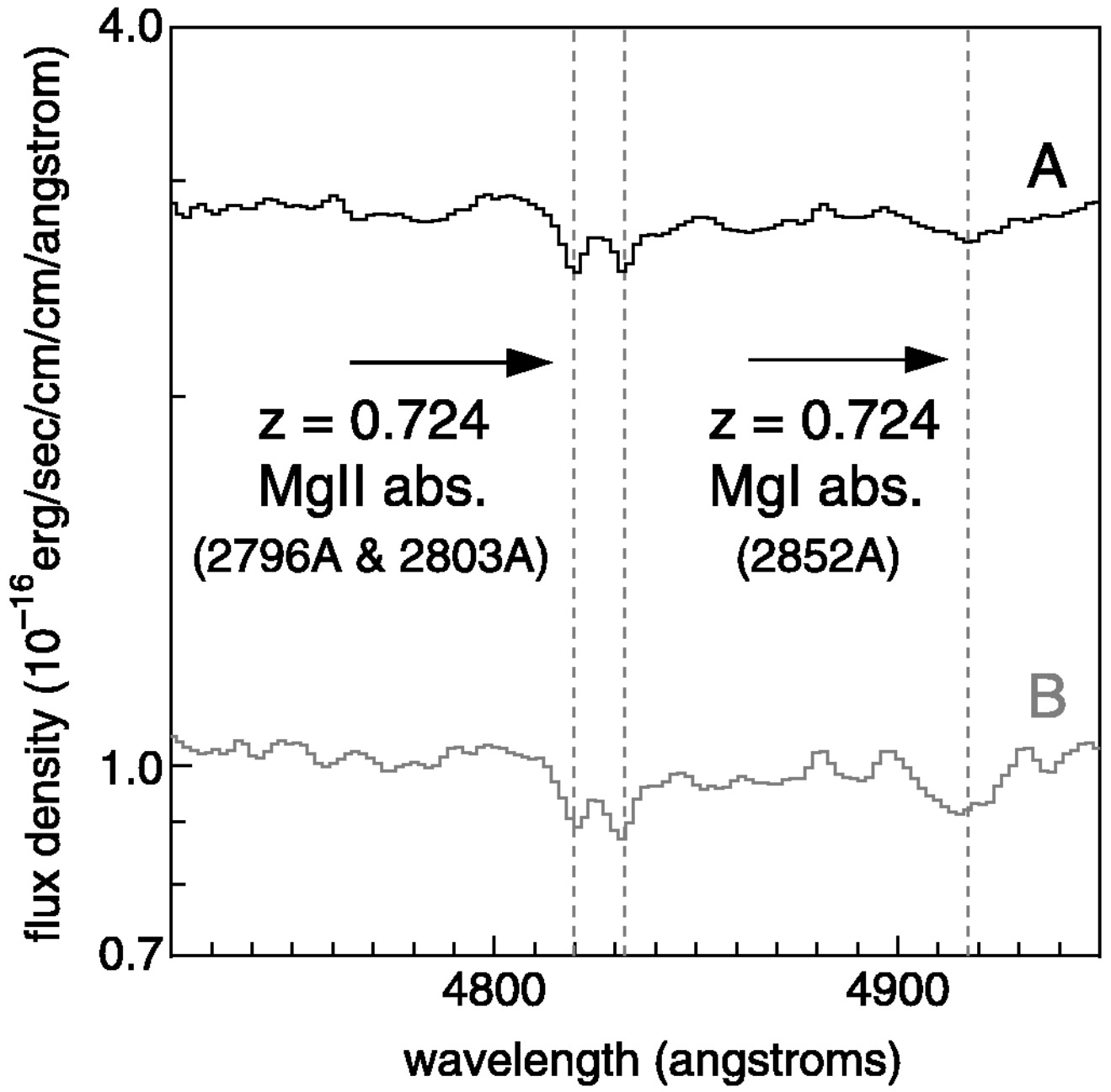

Caption: Fig. 7.

Enlarged region of Fig. 6 showing the common absorption‐line features in SDSS J0246−0825 components A and B. The vertical gray dotted lines (4819.5, 4831.8, and 4917.0 Å) represent the positions of the absorption lines redshifted to ﹩z=0.724﹩ of Mg II λ2795.53 and λ2802.71 and Mg I λ2852.13, respectively. The Mg II absorption lines and possibly the Mg I absorption line are seen in both components. The rest‐frame equivalent widths are 0.81 and 0.62 Å in the spectrum of component A and 0.77 and 0.79 Å in the spectrum of component B for the Mg II λ2795.53 and λ2802.71 absorption lines, respectively.
