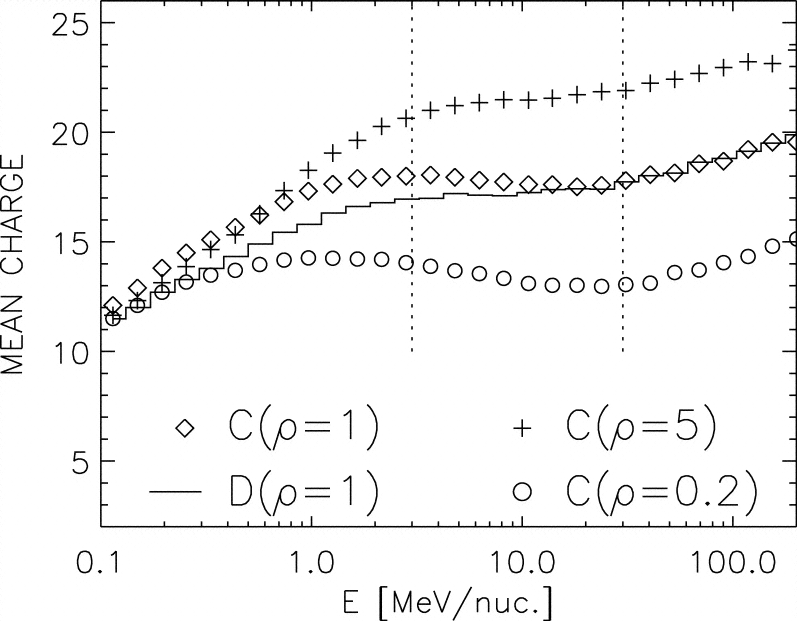

Caption: Fig. 1.
Mean charge states of Fe in shock‐accelerated particles escaping into the interplanetary medium. The particle escape is dominated either by diffusion (D: model 1; histogram) or by convection (C: model 2; plus signs, diamonds, and circles). The normalization coefficient of the coronal density profile is shown in parentheses (eq. [2]).
