Direct Molecular-scale Insight into Soluble Organic Matter from the Murchison and Aguas Zarcas Meteorites Enabled by 21T FT-ICR MS and Single-molecule HR-AFM Imaging

  • Authors: Joseph W. Frye-Jones, Martha L. Aguilera, Percy Zahl, Alan G. Marshall, Ryan P. Rodgers

Joseph W. Frye-Jones et al 2026 The Planetary Science Journal 7 .

  • Provider: AAS Journals

Caption: Figure C4.

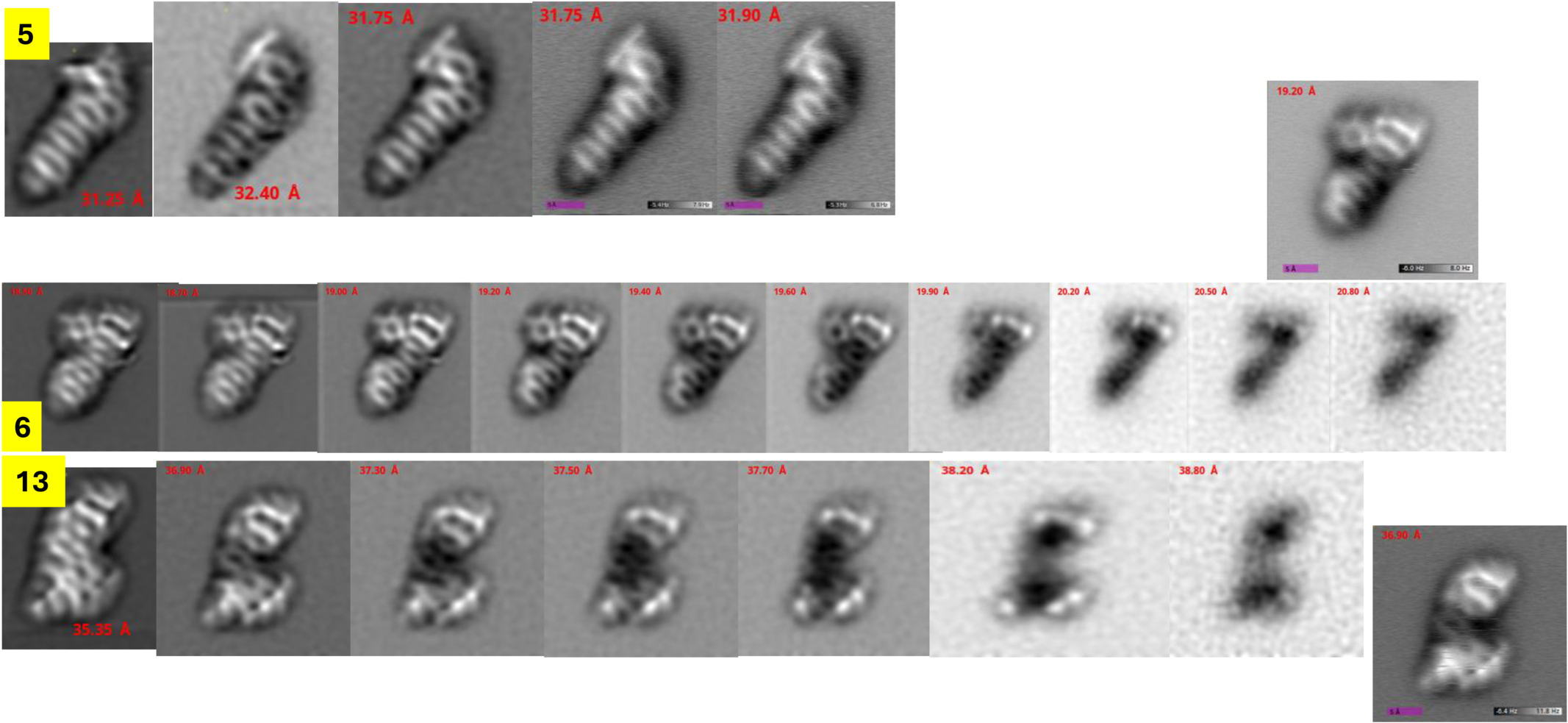

Supplemental AFM images detailing molecules labeled 5, 6, and 13 in Figure 10. We acquired sets of limited HR-AFM Z-slices for some molecules and present them here “as they are” for future advances in AI-based AFM image-to-structure techniques that may allow a better chemical structure evaluation.
