Characterization of Europa’s Interior through Synthesis of Europa Clipper Data

  • Authors: Flavio Petricca, Corey J. Cochrane, Gael Cascioli, Erwan Mazarico, Scott D. Chang, Steven D. Vance, Francis Nimmo, Julie Castillo-Rogez

Flavio Petricca et al 2026 The Planetary Science Journal 7 .

  • Provider: AAS Journals

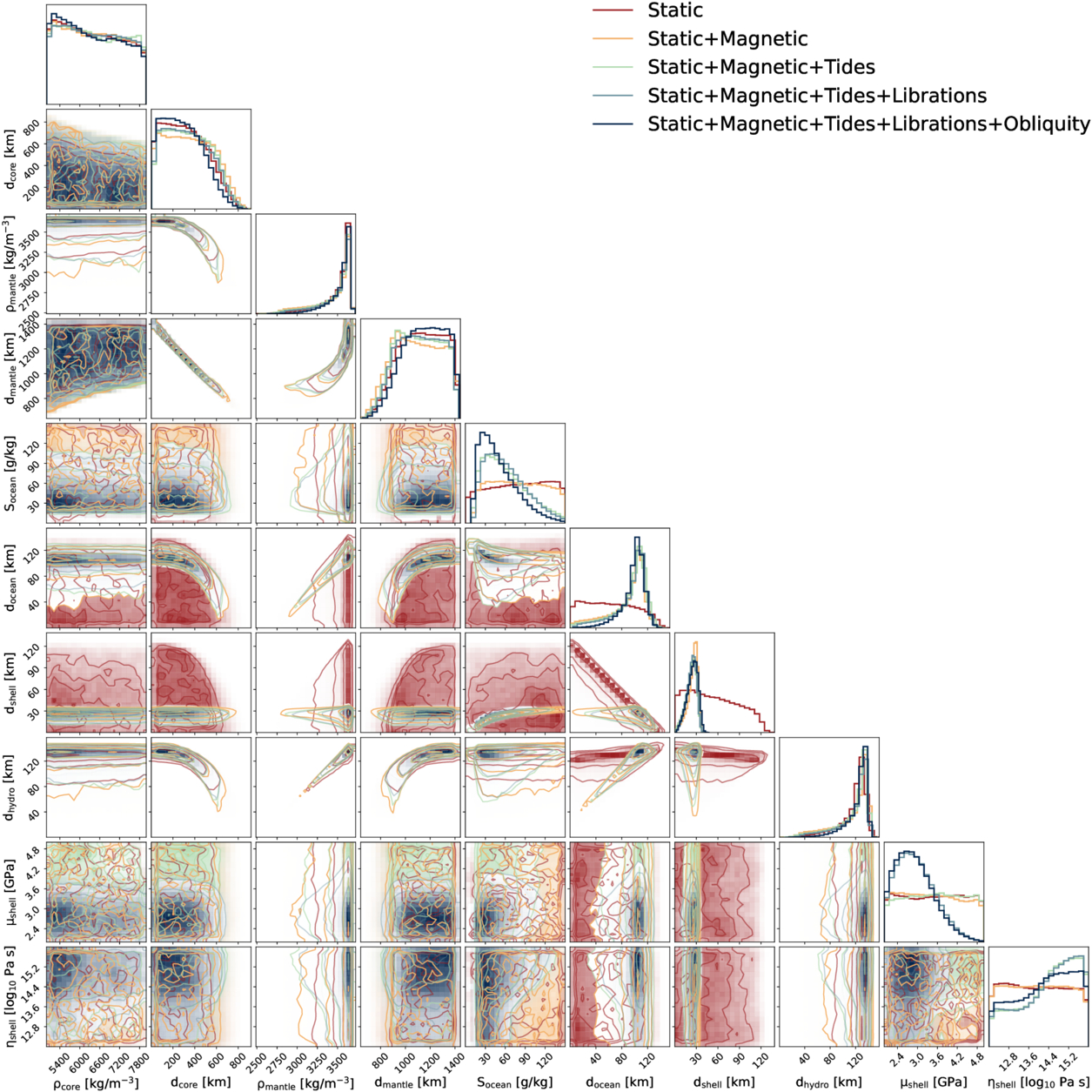

Caption: Figure 5.

Posterior distributions for the interior properties obtained from the inversion of different combinations of the geophysical observations related to the reference model. Each case includes an additional constraint on top of the static gravity observations, which represents our current knowledge of Europa’s interior structure based on Galileo gravity data (L. Gomez Casajus et al. 2021). The contour lines correspond to the 1σ, 2σ, and 3σ credible regions (68%, 95%, and 99.7% probability).
