The PSR J0435+3233 Triple System

  • Authors: Z. L. Yang, J. L. Han, Yi Yan, Bin Liu, Y. L. Guo, M.K. Yang, Bo Wang, Wei-Min Gu, J. Li, L. H. Li, J. Xu, Jian-Ning Fu

Z. L. Yang et al 2026 The Astrophysical Journal Letters 1010 .

  • Provider: AAS Journals

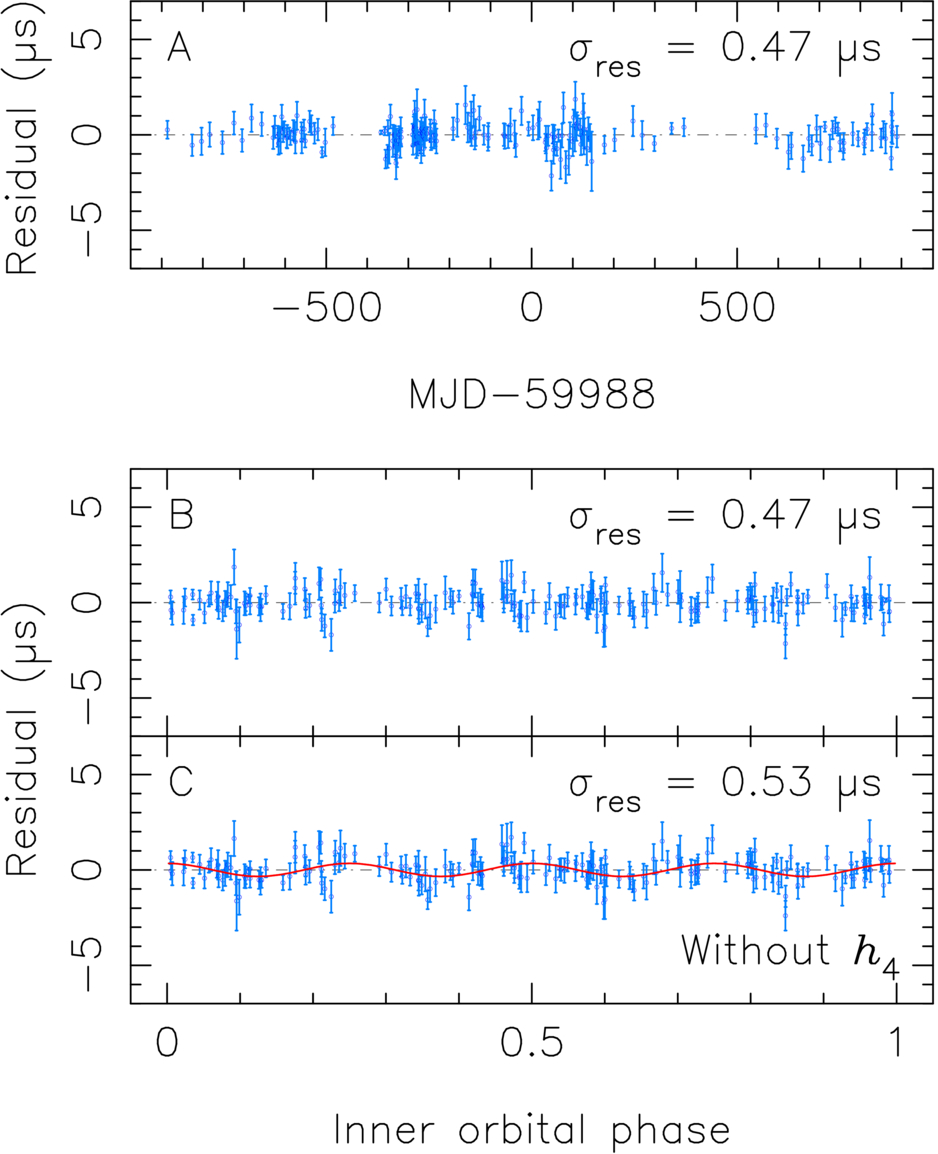

Caption: Figure 2.

FAST timing residuals of PSR J0435+3233 based on the ELL1H model (see Table 1). Panel (A) shows the timing residuals across the observation dates (in MJD). Panels (B) and (C) show the residuals as a function of inner orbital phase (measured from the ascending-node passage) with and without considering the Shapiro-delay parameter h4 in the timing model. The corresponding fourth harmonic terms are also indicated by the red line. The expected peak phase of the Shapiro-delay term is 0.25 when all harmonics are included.
