Statistics of Solar Filament Mass Based on CHASE Sun-as-a-star Spectroscopic Observations

  • Authors: T. Y. Xie, Z. H. Zhao, X. Cheng, Y. H. Chen, Z. Zheng, Q. Hao, C. Li, M. D. Ding

T. Y. Xie et al 2026 The Astrophysical Journal Letters 1008 .

  • Provider: AAS Journals

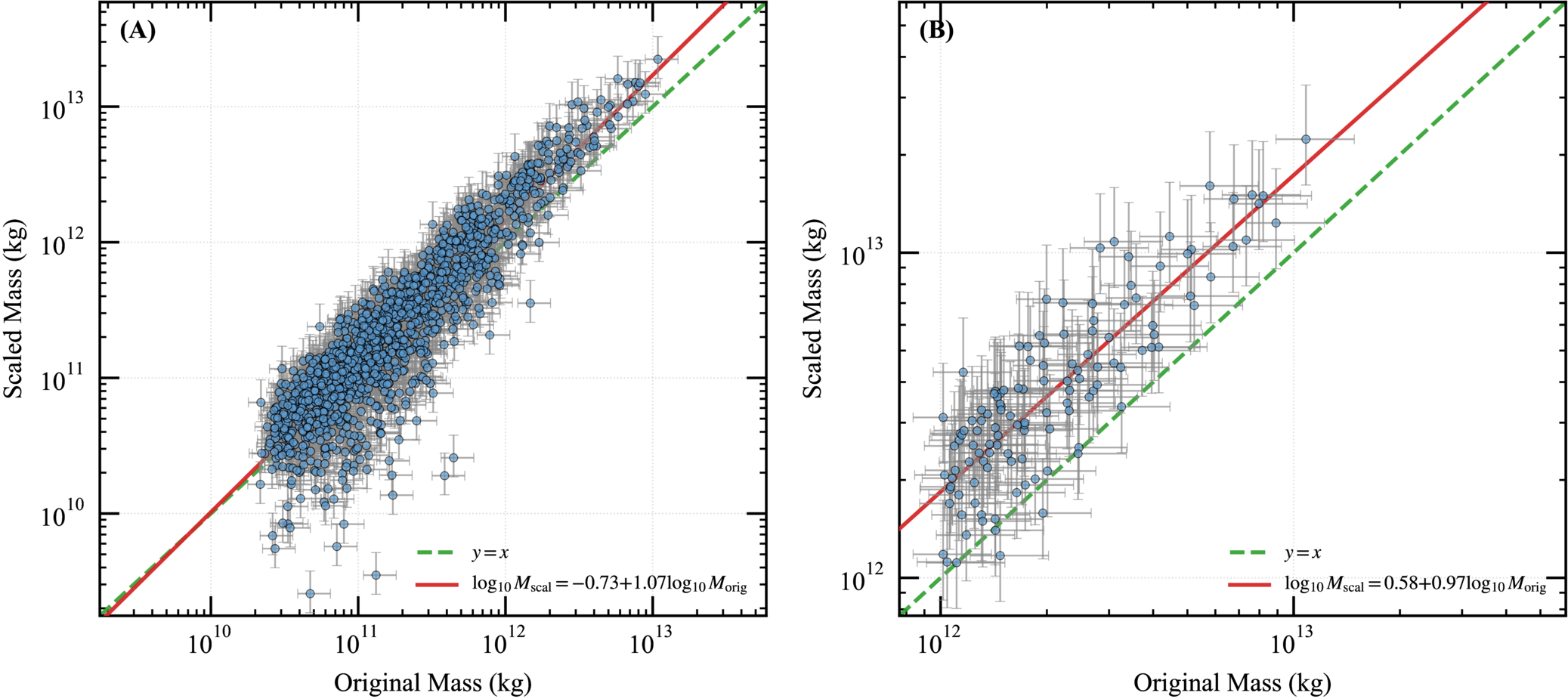

Caption: Figure 5.

Comparison between the spatially resolved mass (Morig) and the Sun-as-a-star estimated mass (Mscal). The red solid line shows the linear fit in logarithmic space, and the green dashed line indicates the one-to-one relation (y = x). (A) Full sample spanning more than 2 orders of magnitude (1010−1013 kg), with best-fit relation ﹩{\mathrm{log}}_{10}({M}_{{\rm{scal}}})=1.07{\mathrm{log}}_{10}({M}_{{\rm{orig}}})-0.73﹩ and the coefficient of determination R2 = 0.82. (B) High-mass subsample restricted to MorigMscal > 1012 kg, with best-fit relation ﹩{\mathrm{log}}_{10}({M}_{\mathrm{scal}})=0.97{\mathrm{log}}_{10}({M}_{\mathrm{orig}})+0.58﹩, showing that Mscal overestimates Morig by a roughly constant factor across the high-mass regime.
