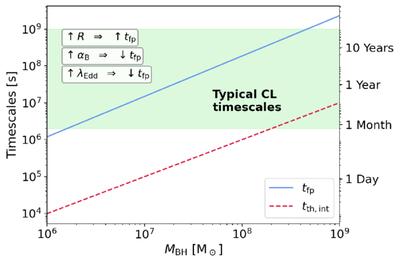

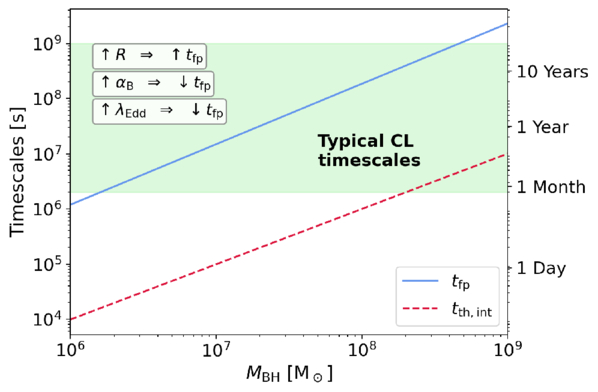

Caption: Figure 1.
Integrated thermal timescale tth,int (red dashed) and front propagation timescale tfp (blue solid) as a function of black hole mass, computed for λEdd = 0.01, R = 20 RSchw, and αB = 0.5. The shaded band marks typical observed CLAGN transition durations. The annotation in the upper left indicates the qualitative dependence of tfp on the model parameters held fixed in this figure.
