Detection of the Polycyclic Aromatic Hydrocarbon Phenalene (C13H10) in the Very Low-luminosity Object MC27/L1521F

  • Authors: Gabi Wenzel, Thomas H. Speak, Ci Xue, Edwin A. Bergin, Andrew M. Burkhardt, Martin A. Cordiner, Miya Duffy, Zachary T. P. Fried, Andrew Lipnicky, Christopher N. Shingledecker, Reace H. J. Willis, Anthony J. Remijan, Michael C. McCarthy, Brett A. McGuire, Ilsa R. Cooke

Gabi Wenzel et al 2026 The Astrophysical Journal Letters 1006 .

  • Provider: AAS Journals

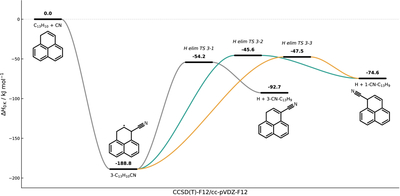

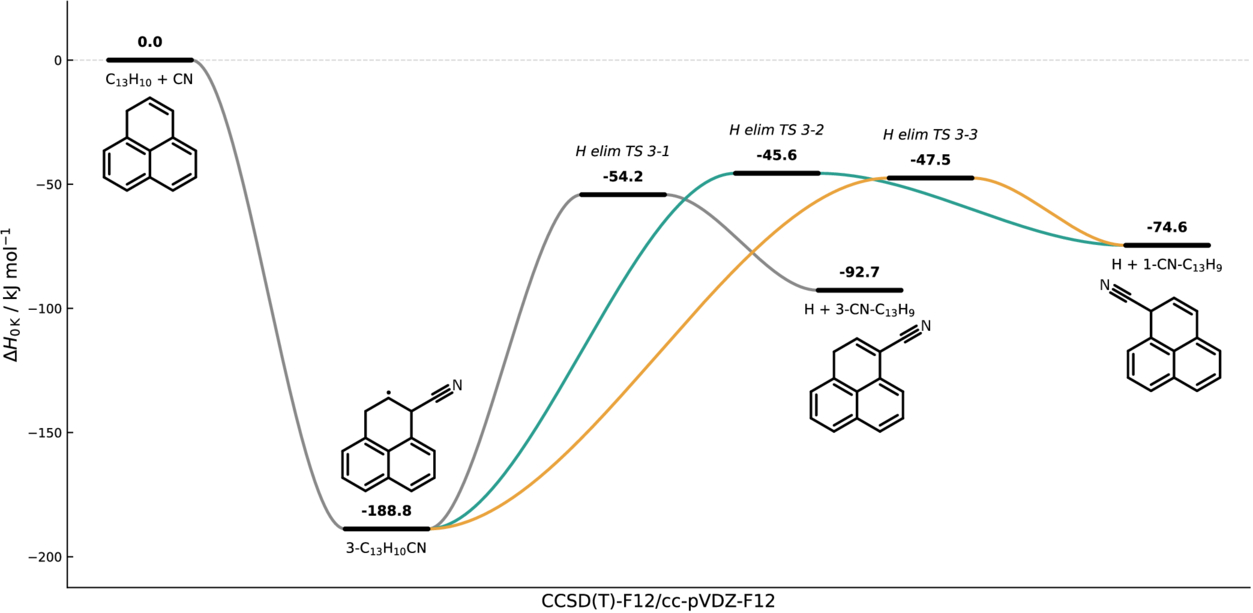

Caption: Figure C2.

A subset of the potential energy surface for the addition of CN to phenalene and subsequent H atom elimination channels at the CCSD(T)-F12/cc-pVDZ-F12//ωB97M-D4/ma-def2-TZVPP level of theory. Only pathways upon addition to the 3-position (see Figure C1) are shown as an example. Other cyano-1H-phenalenes will form analogously and involving energies presented in Table C1.
