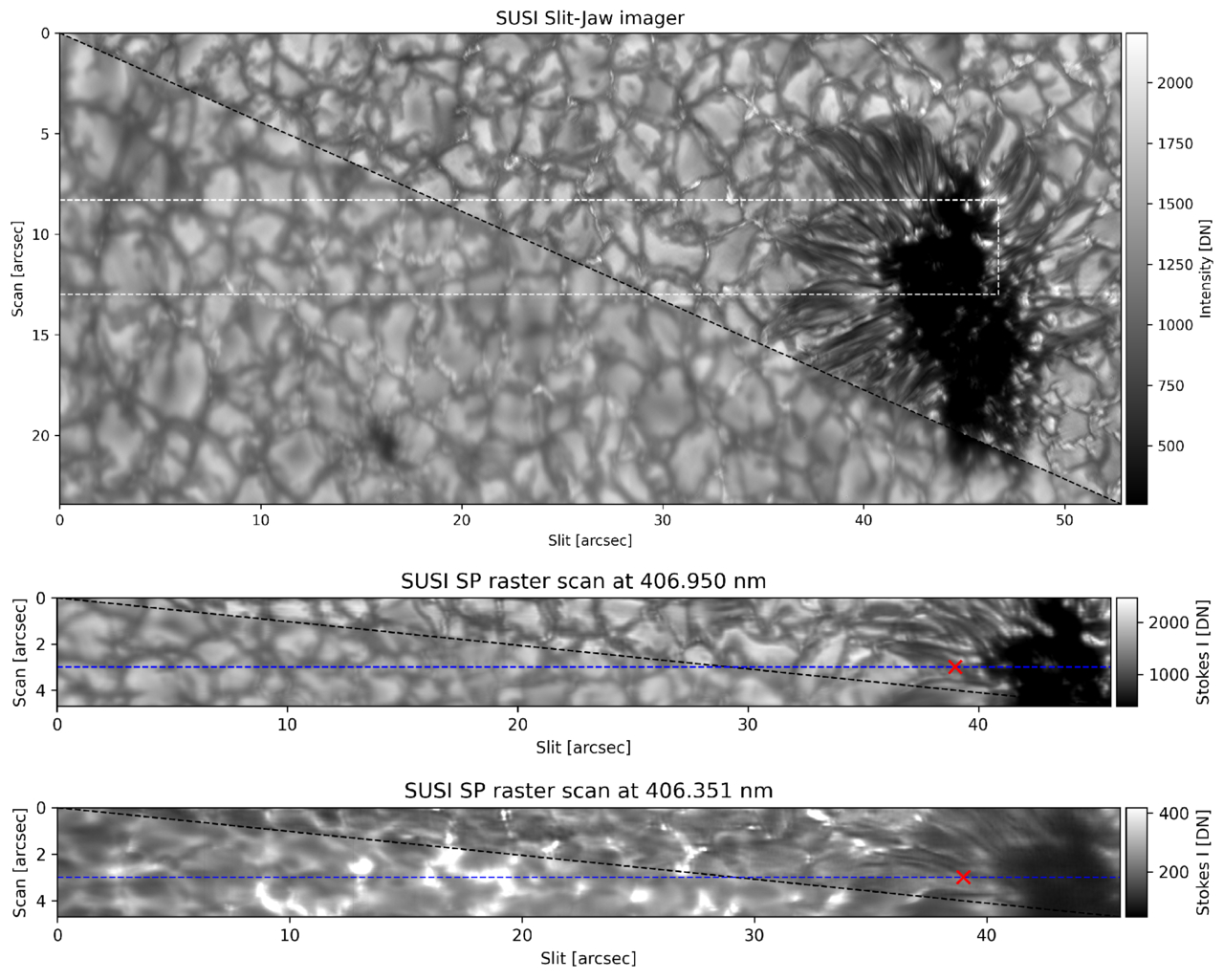

Caption: Figure 3.
SUSI observation centered at 407.0 nm, acquired during a small 8 minute long portion of the full spectral scan on 2024 July 14 (see SUNRISE ID 22_SPOT in Table 1). Upper panel: a single SJ image acquired at 17:16:26 UT, along with the cotemporal restored frame, separated by a black dashed line. The dashed white rectangle marks the approximate area scanned by the slit. Note that the slit, originally visible near the bottom of the white box, was removed using a Fourier filter. Middle panel: single wavelength point at 406.950 nm (see the green lines in Figure 4) of the raster scan, recorded from 17:08:42 to 17:17:01 UT. Versions before and after image restoration are separated by the diagonal black dashed line. The dashed blue line and red cross mark the cut locations used for the slit spectra and single spectrum shown in Figure 4, respectively. The pixel scales along the slit and scan directions are 0﹩\mathop{.}\limits^{\unicode{x02033}}﹩0297 and 0﹩\mathop{.}\limits^{\unicode{x02033}}﹩0307, respectively. Note that the axes scale in the top and middle panels are different. Bottom panel: same as the middle panel but for the wavelength 406.351 nm.
