Worlds Next Door: A Candidate Giant Planet Imaged in the Habitable Zone of α Centauri A. I. Observations, Orbital and Physical Properties, and Exozodi Upper Limits

Authors: Charles Beichman, Aniket Sanghi, Dimitri Mawet, Pierre Kervella, Kevin Wagner, Billy Quarles, Jack J. Lissauer, Max Sommer, Mark Wyatt, Nicolas Godoy, William O. Balmer, Laurent Pueyo, Jorge Llop-Sayson, Jonathan Aguilar, Rachel Akeson, Ruslan Belikov, Anthony Boccaletti, Elodie Choquet, Edward Fomalont, Thomas Henning, Dean Hines, Renyu Hu, Pierre-Olivier Lagage, Jarron Leisenring, James Mang, Michael Ressler, Eugene Serabyn, Pascal Tremblin, Marie Ygouf, Mantas Zilinskas

Charles Beichman et al 2025 The Astrophysical Journal Letters 989 .

Provider: AAS Journals

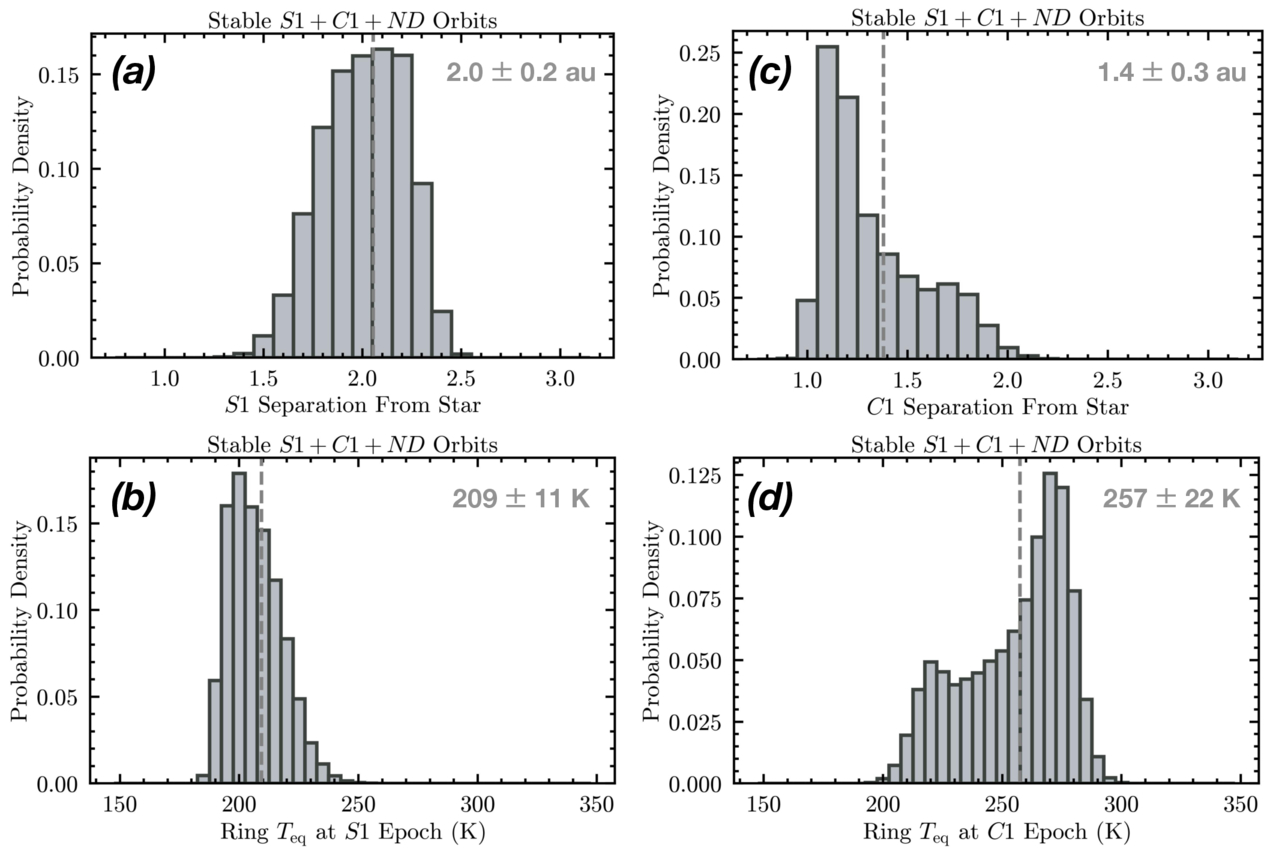

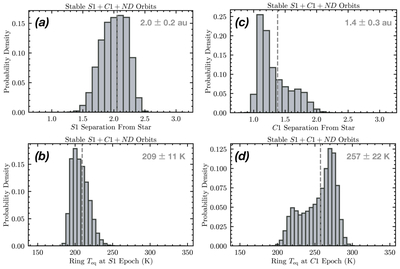

Caption: Figure 14.

Range of (true) star–planet separations (top) and instantaneous temperatures (bottom) for a planetary ring with A_B = 0.1, no thermal inertia, and f = 1, seen at the epochs of S1 (left) and C1 (right) based on the stable orbits consistent with the nondetections in the prograde a < 2 au family as described in Section 4. The mean value of each distribution is marked with a dashed line and noted with the standard deviation in the top right corner of each panel.
