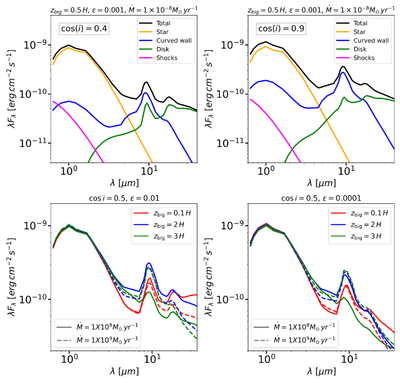

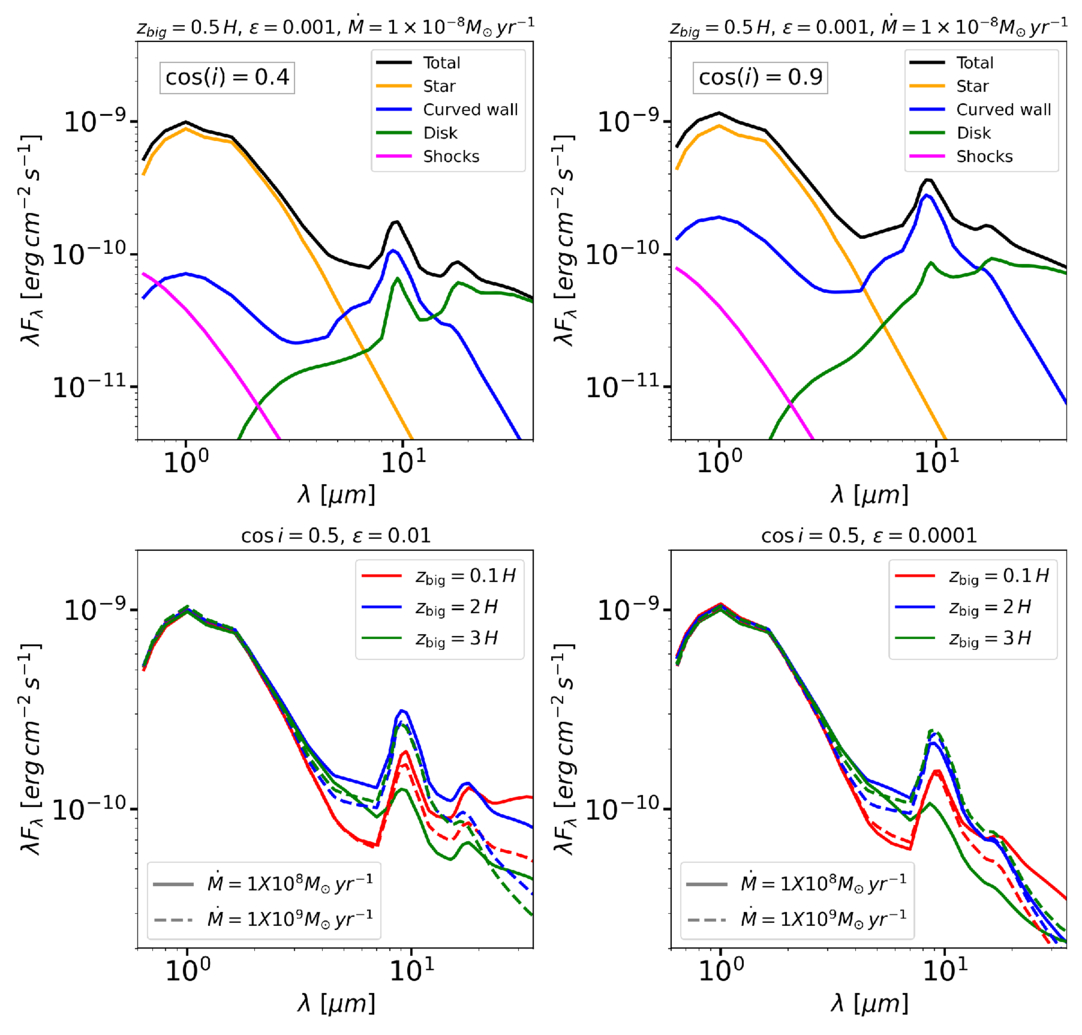

SEDs of disk models with curved walls. The upper panels are models with ϵ = 0.001, ﹩\dot{M}=1\times 1{0}^{-8}{M}_{\odot }\,{{\rm{yr}}}^{-1}﹩, and z_big = 0.5H. Two inclinations are shown: ﹩\cos (i)=0.4﹩ (i = 66﹩\mathop{.}\limits^{{\unicode{x000b0}}}﹩4, upper left) and ﹩\cos (i)=0.9﹩ (i = 25﹩\mathop{.}\limits^{{\unicode{x000b0}}}﹩8, upper right). Both panels show the contribution from the star (yellow), the curved wall (blue), the disk (green), the accretion shocks (magenta), and the total (black). The lower panels show models with ﹩\cos (i)=0.5﹩, and two values of ϵ: 0.01 (lower left) and 0.0001 (lower right). The colors indicate z_big values: 0.1H (red), 2H (blue), and 3H (green), and the line style corresponds to ﹩\dot{M}=1\times 1{0}^{-8}{M}_{\odot }\,{{\rm{yr}}}^{-1}﹩ (solid) and ﹩\dot{M}=1\times 1{0}^{-9}{M}_{\odot }\,{{\rm{yr}}}^{-1}﹩ (dashed).
